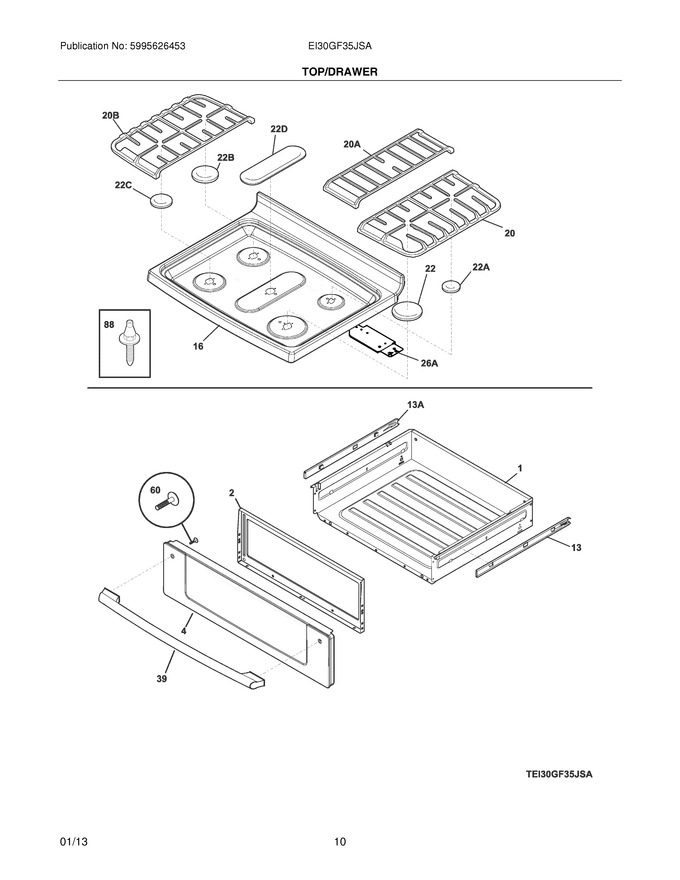

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408903		Drawer,warmer				$ 111.30
2	5304527988		Liner,black ,drawer   (Replaces: 316403203)			Immediately	$ 26.54
4	316382500		Panel Assy,drawer ,steel/glass ,stainless/black,w/trim				$ 285.34
13	316415000		Glide,warmer ,inner Rh				$ 58.82
16	316506859		Maintop,assembly ,black				$ 254.15
20	316537800		Grate,double Burner ,lh				$ 246.02
22	5304508468		Cap,18.2k Burner ,black   (Replaces: 316262104)				$ 49.45
39	316380802		Handle,door ,stainless				$ 250.86
60	316439503		Screw,handle Mtg. ,no.10-24 X 1.000 ,(2)		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
20A	316537900		Grate,burner ,center				$ 227.28
20B	316538000		Grate,double Burner ,rh				$ 242.06
22A	5304508441		Cap,5k Burner ,matte ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	316261904		Cap,12k Burner ,black				$ 46.36
22C	5304508442		Cap,9.5k Burner ,matte ,black   (Replaces: 316261804)			Immediately	$ 36.55
22D	316559604		Cap,9.5k Burner ,black ,oval				$ 72.30
26A	316352700		Bracket,chassis Support		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
