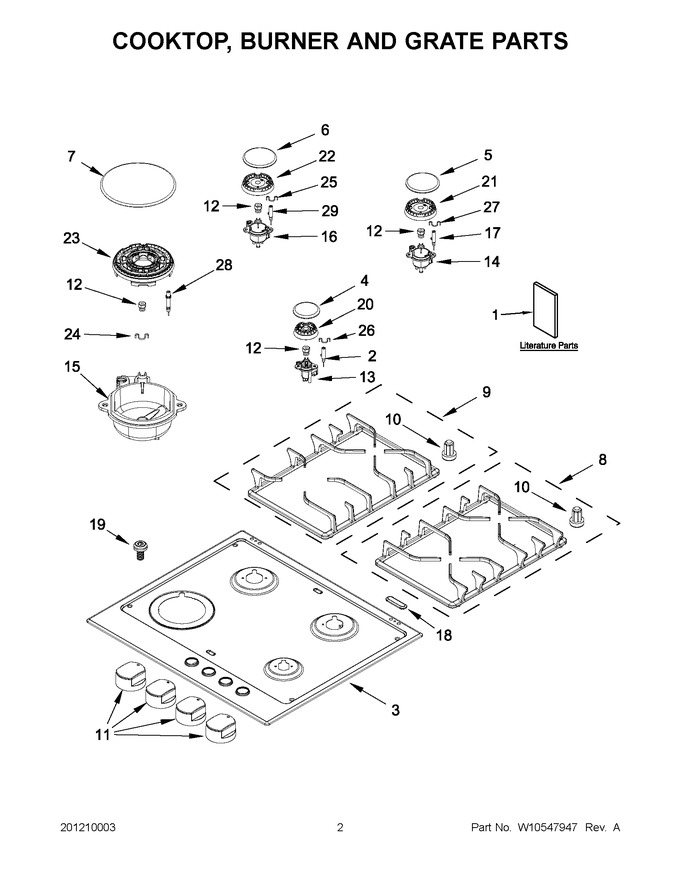

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10545655		Installation Instructions		Appelez-nous	-
1	W10545656		Gas Conversion Instructions		Appelez-nous	-
1	W10547955		Use And Care Guide		Appelez-nous	-
2	W10484335		Ignitor, Surface Right Front				$ 17.94
3	W10517477		Cooktop, Gas Stainless		Appelez-nous	-
4	W10483939		Burner Cap Aux Right Front				$ 27.94
5	W10483940		Burner Cap Sr Right Rear				$ 30.53
6	W10483940		Burner Cap Sr Left Rear				$ 30.53
7	W10517717		Burner Cap Ur Left Front				$ 50.67
8	W10483909		Grate Right Side				$ 77.95
9	W10483907		Grate Left Side				$ 131.27
10	W10483912		Bumper, Grate				$ 14.25
11	W10517735		Knob, Gas Cooktop		Appelez-nous	-
12	W10484296		Kit (liquid Propane Orifices)				$ 34.97
12	W10484298		Kit (natural Gas Orifices)		Appelez-nous	-
13	W10483915		Holder, Orifice Aux Right Front		Appelez-nous	-
14	W10483916		Holder, Orifice Sr Right Rear		Appelez-nous	-
15	W10517706		Holder, Orifice Ur Left Front		Appelez-nous	-
16	W10483916		Holder, Orifice Sr Left Rear		Appelez-nous	-
17	W10484335		Ignitor, Surface Right Rear				$ 17.94
18	W10483906		Trim, Screw Cover Cooktop				$ 17.17
19	W10484471		Screw, Cooktop		Appelez-nous	-
20	W10483936		Head, Burner Aux Right Front				$ 19.93
21	W10483937		Head, Burner Sr Right Rear				$ 24.26
22	W10483937		Head, Burner Sr Left Rear				$ 24.26
23	W10517714		Head, Burner Ur Left Front		Appelez-nous	-
24	W10236996		Clip, Ignitor Left Front		Appelez-nous	-
25	W10236996		Clip, Ignitor Left Rear		Appelez-nous	-
26	W10236996		Clip, Ignitor Right Front		Appelez-nous	-
27	W10236996		Clip, Ignitor Right Rear		Appelez-nous	-
28	W10236997		Ignitor, Surface Left Front				$ 68.81
29	W10484335		Ignitor, Surface Left Rear				$ 17.94
