01 - Cooktop, Burner And Grate Parts

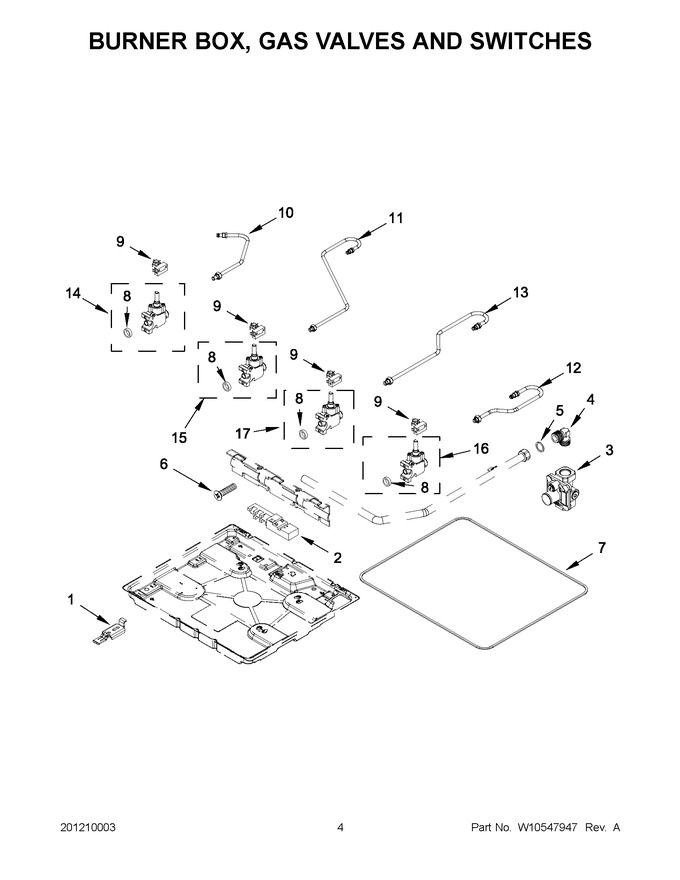

02 - Burner Box, Gas Valves And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10484469		Bracket, Mounting Cooktop				$ 16.87
2	W10484366		Module, Spark And Terminal Board				$ 39.76
3	8186962		Regulator,pressure				$ 199.00
4	8186827		Elbow, Manifold		Appelez-nous	-
5	8186829		Gasket, Manifold Elbow		Appelez-nous	-
6	W10517408		Screw, Manifold 8-18x5/16		Appelez-nous	-
7	W10515438		Gasket, Cooktop		Appelez-nous	-
8	8186828		Gasket, Valve				$ 44.05
9	W10484356		Switch, Ignition				$ 27.57
10	W10517731		Tubing, Gas Ur Left Front		Appelez-nous	-
11	W10484465		Tubing, Gas Sr Left Rear		Appelez-nous	-
12	W10484463		Tubing, Gas Aux Right Front		Appelez-nous	-
13	W10484462		Tubing, Gas Sr Right Rear		Appelez-nous	-
14	8186816		Valve, Gas 4-crown Left Front		Appelez-nous	-
15	8186817		Valve, Gas Sr Left Rear				$ 194.63
16	8186818		Valve, Gas Aux Right Front				$ 169.94
17	8186817		Valve, Gas Sr Right Rear				$ 194.63

    View Diagram in Separate Window       Print Part List
