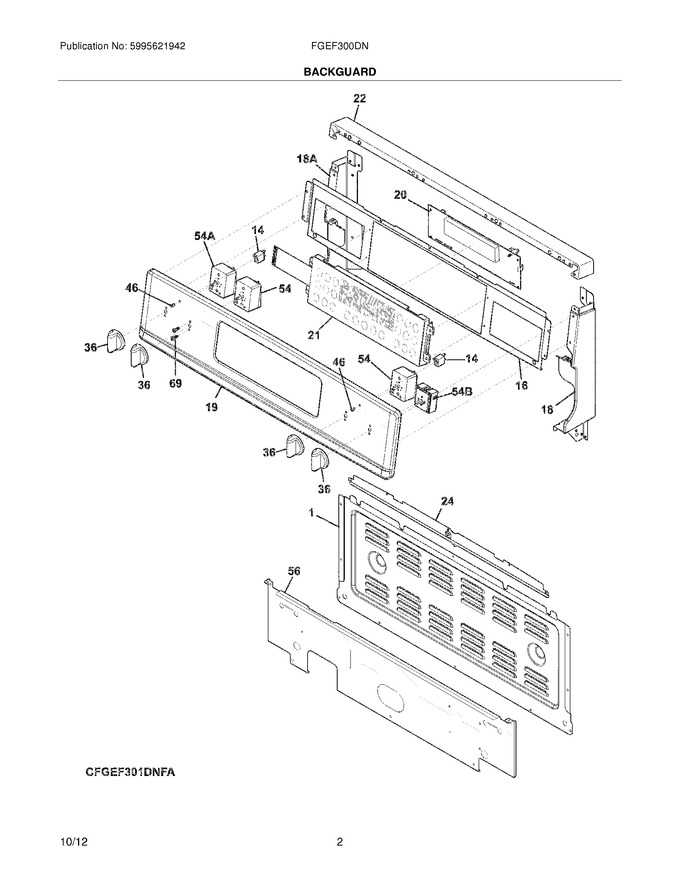

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314111		Panel,cover ,upper		Appelez-nous	-
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
16	318949700		Bracket,timer Support		Appelez-nous	-
18	318311932		End Cap,backsplash ,white ,rh		Appelez-nous	-
19	316572437		Panel,backguard ,white		Appelez-nous	-
22	318413500		Cap,top ,white ,backguard		Appelez-nous	-
24	318566201		Trim,back ,upper		Appelez-nous	-
36	316544206		Knob,control ,white ,(5)				$ 52.46
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
56	318534931		Shield,backguard ,white ,inner		Appelez-nous	-
69	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
18A	318311933		End Cap,backsplash ,white ,lh		Appelez-nous	-
F20	316443858		Control,electronic ,es610w15 ,dual Oven		Appelez-nous	-
F21	318566040		Timer Assembly,es610 ,white ,w/overlay		Appelez-nous	-
F54	316436000		Switch,infinite ,small Element			Immediately	$ 80.34
F54A	316436001		Switch,infinite ,large Element			Immediately	$ 51.68
F54B	318589600		Switch,infinite ,dual				$ 191.99
FNI	318588903		Harness,wiring ,controls		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318573700		Bracket,control Panel		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
