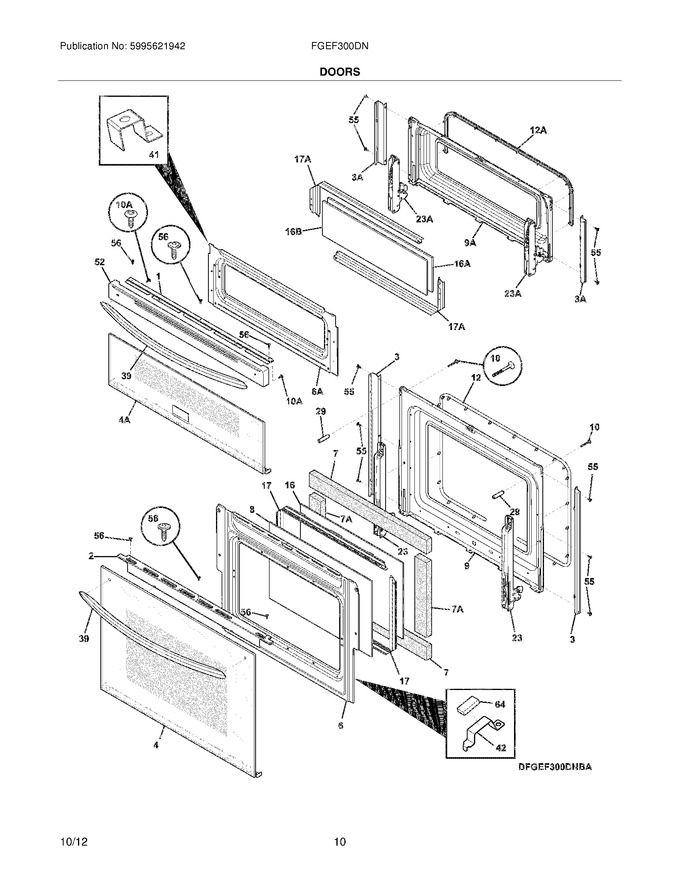

09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318562703		Trim,top ,black ,upper Door		Appelez-nous	-
2	318260226		Trim,oven Door ,white ,upper				$ 56.54
3	318301411		Trim,lower Door ,white		Appelez-nous	-
4	318304191		Door Assembly,glass ,white ,lower Oven ,w/trim				$ 486.47
6	318260527		Baffle,door ,lower		Appelez-nous	-
7	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318411650		Liner,oven Door				$ 138.71
10	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
12	318053120		Seal,oven Door   (Replaces: 318053130)			Immediately	$ 159.62
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,(2)   (Replaces: 318264724)				$ 72.05
23	318567107		Hinge,oven Door ,(2)				$ 63.89
29	318014405		Spacer,door		Appelez-nous	-
39	316544501		Handle,door ,white			Immediately	$ 131.57
41	318594700		Support,glass ,upper Oven ,(2)		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318304209		Trim,door ,white ,upper				$ 396.22
55	316021109		Screw,8-18 X 0.531 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
56	5304448821		Screw,8-18 X 1/2 ,white ,(6)		Appelez-nous	-
64	318165800		Spacer				$ 17.72
10A	5304453593		Screw,handle Mtg.				$ 10.53
12A	318053335		Seal,door ,upper Oven		Appelez-nous	-
16A	318947300		Glass,door ,upper Oven ,(2)		Appelez-nous	-
16B	318947303		Glass,door ,clear ,upper Oven		Appelez-nous	-
17A	318264727		Spacer,glass ,upper ,(2)		Appelez-nous	-
23A	318567135		Hinge,door ,upper Oven ,(2)		Appelez-nous	-
3A	318301421		Trim,upper Door ,white		Appelez-nous	-
4A	318934204		Glass Assembly,door ,white ,upper ,w/trim & Badge		Appelez-nous	-
6A	318260526		Baffle,door ,upper		Appelez-nous	-
7A	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
9A	318950700		Liner,oven Door ,upper		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316433603		Label,anti-tip				$ 3.55
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
