01 - Cover Sheet

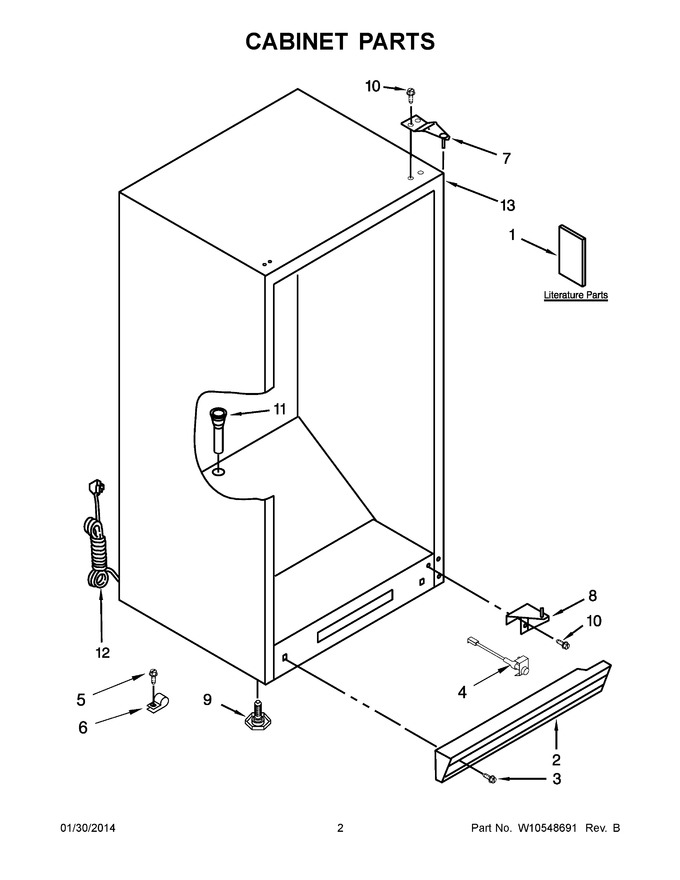

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10326811 | Energy Label/tag |
|
- | |||||
| 1 | W10326799 | Owners Manual |
|
- | |||||
| 2 | 4-80502-119 | Trim, Toe Kick (white) |
|
- | |||||
| 3 | WP489478 | Screw (Replaces: 3-24004-107) |
|
$ 6.98 | |||||
| 4 | 3-82130-001 | Assembly, Power Warning Light Bracket |
|
$ 76.33 | |||||
| 5 | WP489478 | Screw (Replaces: 3-24004-107) |
|
$ 6.98 | |||||
| 6 | 1-80231-101 | Clamp, Tube |
|
- | |||||
| 7 | 2-81016-105 | Hinge, Top Fc (white) |
|
$ 37.06 | |||||
| 8 | 8210238 | Bottom Hinge Assembly (white) (Replaces: 4-82693-001) |
|
$ 38.28 | |||||
| 9 | WP3-82710-001 | Leg, Leveling (black) (Replaces: 3-82710-001) |
|
Immediately | $ 18.29 | ||||
| 10 | WP8204624 | Screw (Replaces: 1-80271-103) |
|
$ 14.99 | |||||
| 11 | W10558247 | Grommet, Drain |
|
- | |||||
| 12 | 4-82399-001 | Cord, Power |
|
$ 52.24 | |||||
| 13 | N/P | Cabinet (not A Serviceable Part) |
|
- |
