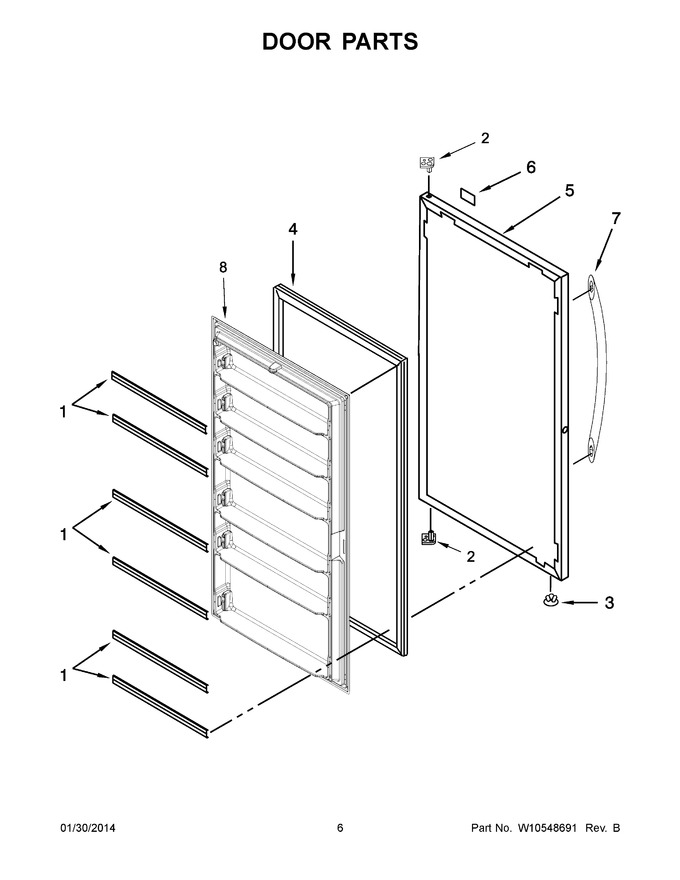

04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10450648 | Rail, Door |
|
- | |||||
| 2 | 2-81124-001 | Stop, Door (natural) |
|
$ 31.15 | |||||
| 3 | 3-24898-007 | Plug, Vent |
|
$ 9.72 | |||||
| 4 | WP4-81679-001 | Gasket, Door (Replaces: 4-81679-001) |
|
$ 253.26 | |||||
| 5 | W10340544 | Door Exterior |
|
$ 526.73 | |||||
| 6 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 7 | WPW10127761K | Assembly, Door Handle (white) (Replaces: 3-83029-002) |
|
$ 168.00 | |||||
| 8 | W10346178 | Door Liner |
|
- |
