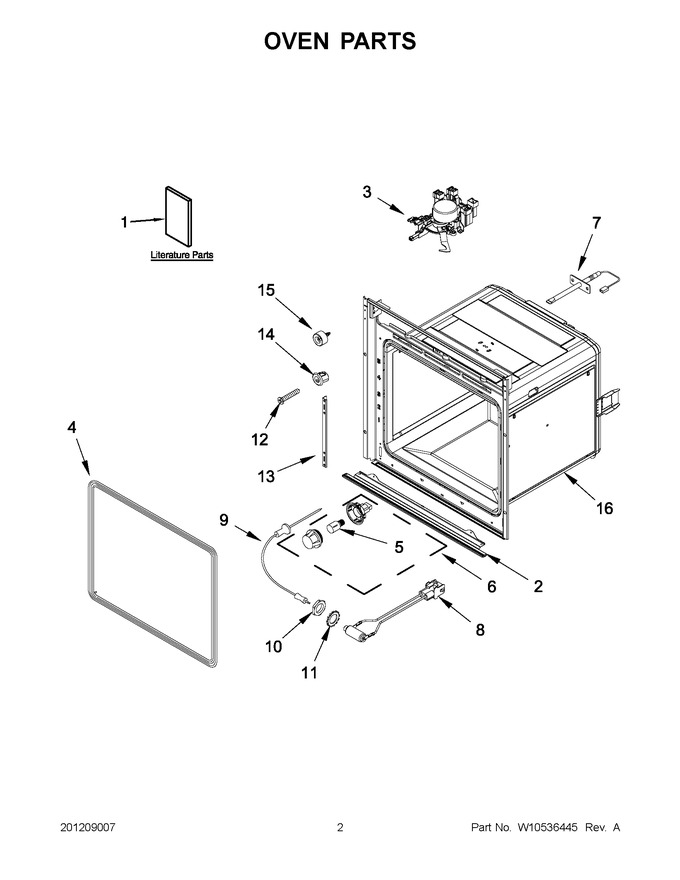

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door
04 - Internal Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10539685 | Installation Instructions |
|
- | |||||
| 1 | W10539710 | Tech Sheet |
|
- | |||||
| 1 | W10539689 | Use And Care Guide |
|
- | |||||
| 2 | W10517979 | Trim, Lower |
|
Immediately | $ 59.66 | ||||
| 3 | W10518305 | Latch, Door |
|
$ 285.01 | |||||
| 4 | W10518387 | Gasket, Door |
|
$ 158.97 | |||||
| 5 | W11791037 | Bulb, Halogen 40 Watt (Replaces: W10518971) |
|
$ 30.96 | |||||
| 6 | W10518973 | Assembly, Bulb Includes Socket And Lens Cover |
|
$ 27.22 | |||||
| 7 | W10518975 | Sensor, Temperature |
|
Immediately | $ 202.08 | ||||
| 8 | W10519001 | Socket, Meat Probe With Harness |
|
- | |||||
| 9 | W10518976 | Probe, Meat |
|
$ 49.01 | |||||
| 10 | W10519007 | Nut, Meat Probe 10x1.57 |
|
- | |||||
| 11 | W10519008 | Washer, Meat Probe |
|
- | |||||
| 12 | W10519011 | Kit, Oven Screws |
|
$ 39.79 | |||||
| 13 | W10517968 | Hinge, Running Mechanism |
|
- | |||||
| 14 | W10519010 | Bumper, Oven |
|
$ 16.47 | |||||
| 15 | W10519005 | Bumper, Oven Door |
|
- | |||||
| 16 | N/P | Liner, Oven (not Serviceable) |
|
- |
