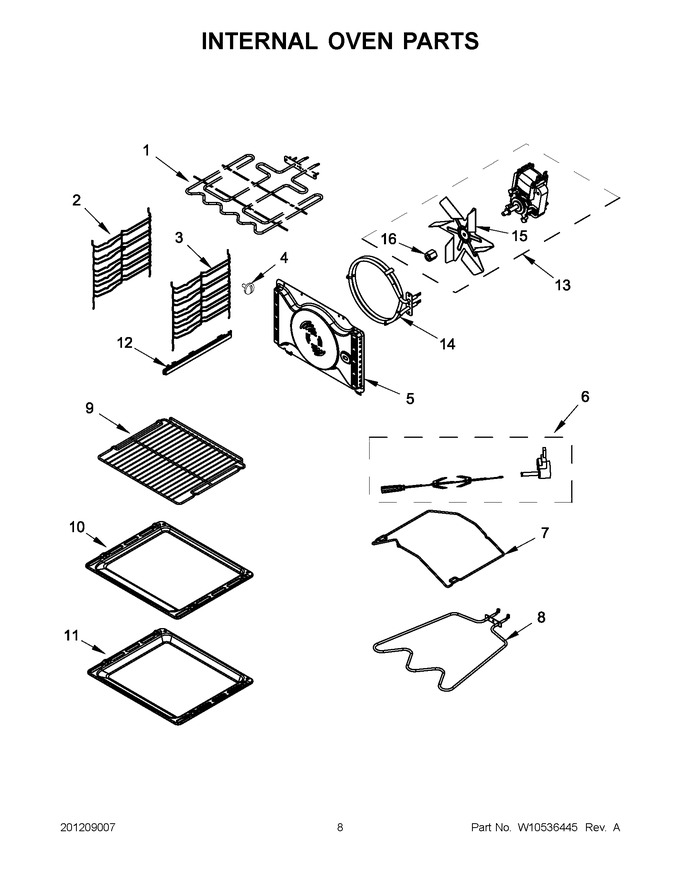

04 - Internal Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10532965 | Element, Upper/grill 2450 Watts (Replaces: W10518927) |
|
$ 174.40 | |||||
| 2 | W10519019 | Grid, Rack Left Side |
|
$ 18.60 | |||||
| 3 | W10519021 | Grid, Rack Right Side |
|
- | |||||
| 4 | W10519022 | Screw, Grid |
|
$ 11.95 | |||||
| 5 | W10518390 | Baffle, Convection Fan |
|
- | |||||
| 6 | W10519017 | Kit, Motor And Spit Rotisserie |
|
- | |||||
| 7 | W10519018 | Rack, Rotisserie Spit Support |
|
$ 95.09 | |||||
| 8 | W10517988 | Element, Lower 1150 Watts |
|
Immediately | $ 37.44 | ||||
| 9 | W10536500 | Rack, Oven (Replaces: W10519013) |
|
$ 8.99 | |||||
| 10 | W10519015 | Tray, Baking |
|
- | |||||
| 11 | W10519016 | Pan, Deep |
|
- | |||||
| 12 | W10519023 | Rail, Sliding Left And Right |
|
$ 267.08 | |||||
| 13 | W10517945 | Motor, Fan Convection |
|
$ 62.87 | |||||
| 14 | W10518925 | Element, Forced Air 2450 Watts |
|
$ 54.98 | |||||
| 15 | 8186866 | Blade, Fan |
|
$ 137.61 | |||||
| 16 | 8186882 | Nut |
|
- |
