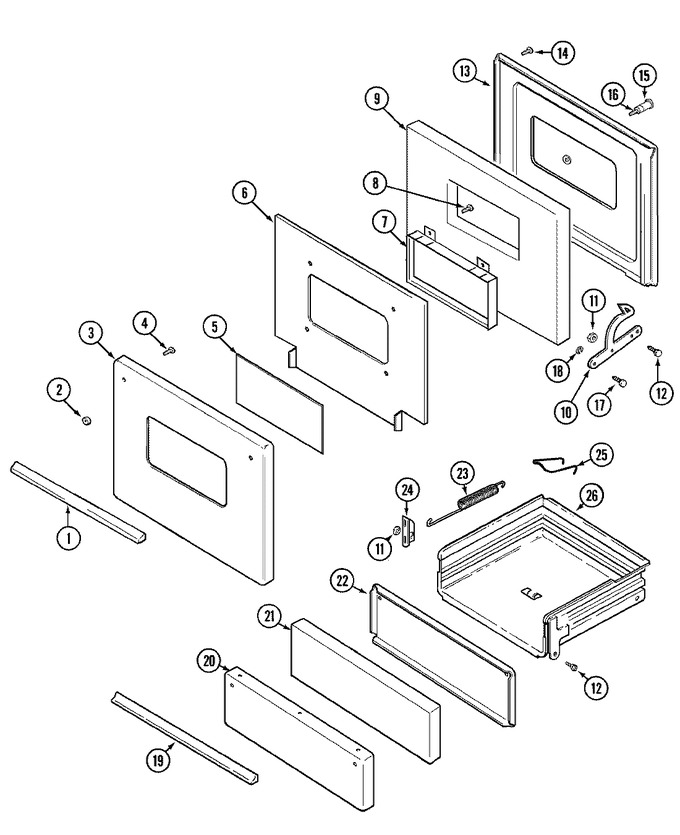

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001871		Handle, Door (chr)----na	10	Appelez-nous	-
2	8010P020-60		Spacer, Door Handle	10	Appelez-nous	-
3	2401W061-71		Panel, Oven Door (wht)	10	Appelez-nous	-
4	WP3387230		Screw   (Replaces: 74002483)	10		Immediately	$ 7.69
5	7902P244-60		Glass, Oven Door (outer)	10	Appelez-nous	-
6	3601F196-80		Baffle, Door	10	Appelez-nous	-
7	7907P007-60		Glass, Oven Door Assy	10	Appelez-nous	-
8	WP7101P126-60		Screw   (Replaces: 7101P059-60)	10		Immediately	$ 6.85
9	7002P102-60		Insulation, Oven Door	10	Appelez-nous	-
10	3418F053-34		Hinge, Oven Door	10	Appelez-nous	-
11	W10080180		Nut Lock   (Replaces: 7103P072-60)	10			$ 12.13
12	7118P009-60		Bolt, Shoulder	10	Appelez-nous	-
13	2402W103-19		Lining Door	10	Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	10		Immediately	$ 6.85
15	WP7101P485-60		Screw, Base   (Replaces: 7101P084-60)	10			$ 26.33
16	7506P052-60		Tube Spacer	10	Appelez-nous	-
17	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
18	W10080180		Nut   (Replaces: 7103P034-60)	10			$ 12.13
19	74001820		Handle (short-chr)	10	Appelez-nous	-
20	2403W019-71		Panel, Drawer (wht)	10	Appelez-nous	-
21	7002P067-60		Insulation, Broiler Door	10	Appelez-nous	-
22	2404F022-19		Lining Door Broiler	10	Appelez-nous	-
23	7803P068-60		Spring, Broiler Drawer	10	Appelez-nous	-
24	3418F035-80		Hinge, Broiler Drawer (rt)	10	Appelez-nous	-
24	3418F034-80		Hinge, Broiler Drawer (lt)	10	Appelez-nous	-
25	7809P004-60		Stop, Broiler Drawer	10	Appelez-nous	-
26	3407W005-19		Drawer, Broiler	10	Appelez-nous	-
