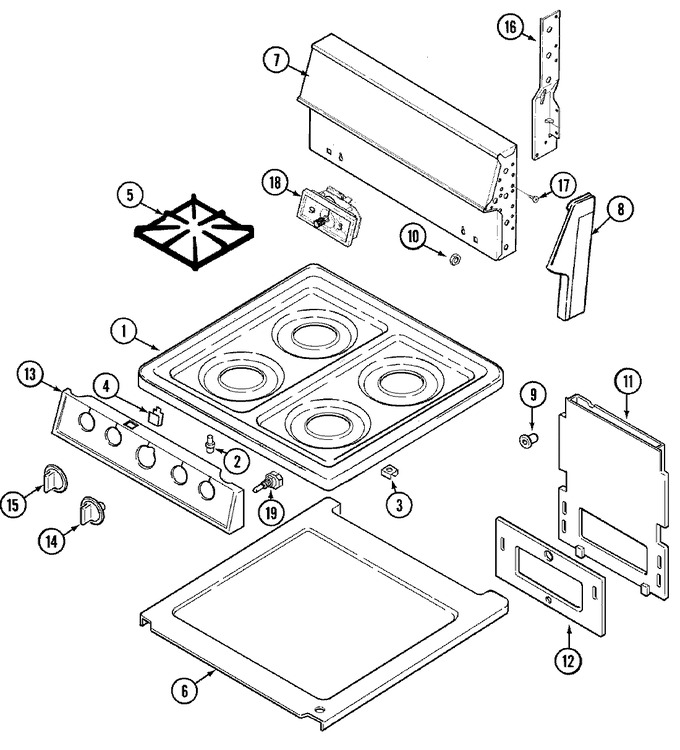

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001F050-81 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 8024P003-60 | Strike, Main Top | 10 |
|
- | ||||
| 3 | WP486255 | Nut, Strike (Replaces: 7103P105-60) | 10 |
|
$ 5.54 | ||||
| 4 | 8002P022-60 | Spring, Catch - Female | 10 |
|
- | ||||
| 5 | 2003W026-00 | Grate (blk) | 10 |
|
- | ||||
| 6 | 4011F164-19 | Box, Burner | 10 |
|
- | ||||
| 7 | 2601W203-81 | Panel, Control (wht) | 10 |
|
- | ||||
| 7 | 7719P005-60 | Plate, Name | 10 |
|
- | ||||
| 8 | 7726P009-60 | End Cap, Backguard (lt-blk) | 10 |
|
- | ||||
| 8 | 7726P020-60 | End Cap, Backguard (rt-blk) | 10 |
|
- | ||||
| 9 | 7103P089-60 | Nut, Projection Weld | 10 |
|
- | ||||
| 9 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 10 | 7103P053-60 | Nut, Push-on End Cap | 10 |
|
- | ||||
| 11 | 4006W062-45 | Box Flue Vent | 10 |
|
- | ||||
| 12 | 7201P038-60 | Gasket, Vent Deflect | 10 |
|
- | ||||
| 13 | 2616F070-71 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 13 | 7103P100-60 | Nut, Tinnerman | 10 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 | |||
| 14 | 7731P040-60 | Knob, Thermostat | 10 |
|
- | ||||
| 15 | 7733P015-60 | Knob, Valve | 10 |
|
- | ||||
| 16 | 3807F345-51 | Support, Panel (lt) | 10 |
|
- | ||||
| 16 | 3807F346-51 | Support, Panel (rt) | 10 |
|
- | ||||
| 17 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 7711P466-60 | Knob, Clock | 10 |
|
$ 14.72 | ||||
| 18 | 7602P056-60 | Clock | 10 |
|
- | ||||
| 18 | 4005F214-51 | Cover, Clock | 10 |
|
- | ||||
| 19 | 7403P144-60 | Switch, Light | 10 |
|
- | ||||
| 20 | 74002578 | Manual, Use & Care | 10 |
|
- | ||||
| 21 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
