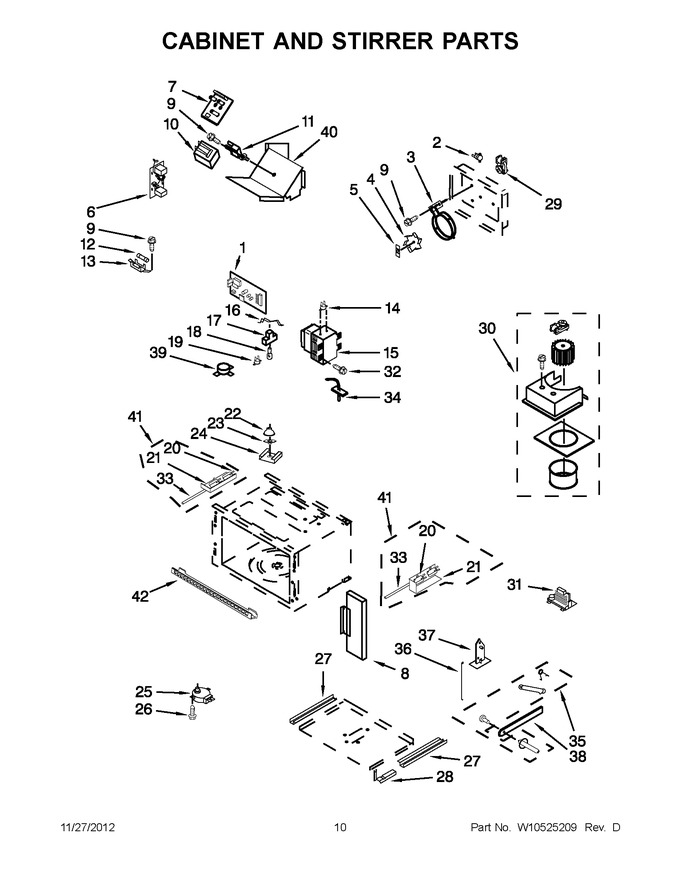

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10915648 | Appliance Manager Microwave (Replaces: W10510103) |
|
Immediately | $ 240.69 | ||||
| 2 | W11607085 | Thermostat (Replaces: W10120223) |
|
Immediately | $ 38.07 | ||||
| 3 | WPW10493735 | Heater, Convection Element (Replaces: W10493735) |
|
Immediately | $ 94.71 | ||||
| 4 | W11512064 | Fan, Convection (Replaces: 4375418) |
|
Immediately | $ 146.87 | ||||
| 5 | W11724411 | Nut, Speed (Replaces: W10120233) |
|
Immediately | $ 51.91 | ||||
| 6 | W10853613 | Noise Filter (Replaces: W10486187) |
|
$ 184.93 | |||||
| 7 | W10120228 | Control, Electric Converter, Wide |
|
$ 187.73 | |||||
| 8 | W10486209 | Trim, Side (right Hand) |
|
$ 50.14 | |||||
| 8 | W10486208 | Trim, Side (left Hand) |
|
$ 67.83 | |||||
| 9 | 461967825321 | Screw (Replaces: W10131249) |
|
$ 10.40 | |||||
| 10 | W11238401 | Transformer (Replaces: 8205692) |
|
Immediately | $ 309.33 | ||||
| 11 | 461967842541 | Thermoactuator (Replaces: 4375427) |
|
$ 61.97 | |||||
| 12 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 16.45 | ||||
| 13 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 74.84 | |||||
| 14 | W11233913 | Thermostat (Replaces: W10287986) |
|
Immediately | $ 133.79 | ||||
| 15 | W11346197 | Magnetron (Replaces: W10120113) |
|
Immediately | $ 244.13 | ||||
| 16 | W10475855 | Spring, Lamp |
|
- | |||||
| 17 | WPW10490593 | Housing, Lamp (Replaces: 8205658) |
|
$ 66.70 | |||||
| 18 | W10886919 | Lamp, Halogen (Replaces: W10287972) |
|
Immediately | $ 29.00 | ||||
| 19 | W11568584 | Thermostat (Replaces: W10389447) |
|
$ 38.20 | |||||
| 20 | W10211972 | Switch (Replaces: W10330566) |
|
Immediately | $ 47.16 | ||||
| 21 | WP8205683 | Holder, Switch (Replaces: 8205683) |
|
Immediately | $ 89.47 | ||||
| 22 | 423107022541 | Reflector (Replaces: 4375320) |
|
$ 73.63 | |||||
| 23 | W11193483 | Lens, Lamp (Replaces: 4375318) |
|
Immediately | $ 89.85 | ||||
| 24 | W11440819 | Clip. Spring (Replaces: W10120231) |
|
$ 19.71 | |||||
| 25 | W10911403 | Motor, Turntable (Replaces: W10510101) |
|
Immediately | $ 105.78 | ||||
| 26 | 461967825321 | Screw (Replaces: 4375202) |
|
$ 10.40 | |||||
| 27 | 8205707 | Support, Bottom |
|
Immediately | $ 58.96 | ||||
| 28 | W10874474 | Hinge-door (Replaces: W10510097) |
|
Immediately | $ 54.10 | ||||
| 29 | 461969000371 | Motor, Convection Fan (Replaces: W10493733) |
|
Immediately | $ 164.36 | ||||
| 30 | W11344874 | Blower Assembly (Replaces: W10330572) |
|
Immediately | $ 164.35 | ||||
| 31 | W10217711 | Inverter (Replaces: W10510105) |
|
Immediately | $ 260.67 | ||||
| 32 | 461967825971 | Screw (Replaces: W10130890) |
|
- | |||||
| 33 | WPW10120235 | Rod, Release (Replaces: W10120235) |
|
Immediately | $ 6.27 | ||||
| 34 | W11208292 | Sensor, Convection (Replaces: W10287987) |
|
Immediately | $ 138.98 | ||||
| 35 | WPW10128850 | Sliding Arm Assembly (Replaces: W10128850) |
|
Immediately | $ 121.78 | ||||
| 36 | W11700292 | Spring, Torsion (Replaces: 8205704) |
|
$ 61.97 | |||||
| 37 | W11684510 | Support (Replaces: 8205686) |
|
Immediately | $ 13.30 | ||||
| 38 | W11214480 | Sliding Arm (Replaces: W10120236) |
|
$ 86.18 | |||||
| 39 | W11699906 | Sensor, Humidity (Replaces: W10389448) |
|
$ 118.76 | |||||
| 40 | W10130898 | Duct, Magnetron (Replaces: W10389596) |
|
- | |||||
| 41 | W11033422 | Harness, Interlock Switch Assemblies (Replaces: W10358241) |
|
Immediately | $ 143.60 | ||||
| 42 | W10486211 | Vent, Top Microwave |
|
$ 53.81 |
