Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10358181 Assembly, Window Pack (white) Appelez-nous -
1 W10358179 Assembly, Window Pack (stainless) Appelez-nous -
1 W10360523 Assembly, Window Pack (stainless Pro-style Model) Appelez-nous -
1 W10358180 Assembly, Window Pack (black) Appelez-nous -
2 WP3196183 Screw   (Replaces: 3196183) In-Stock Immediately $ 6.98

3 WPY706189 Screw   (Replaces: 7101P653-60) In-Stock Immediately $ 6.47

4 WPW10320959 Badge (zinc Pro-style Model)   (Replaces: W10320959) Special Order $ 87.80

4 WPW10243392 Badge (black)   (Replaces: W10243392) Special Order $ 63.17

4 WPW10243393 Badge (white)   (Replaces: W10243393) Special Order $ 59.99

4 WPW10243391 Badge (stainless)   (Replaces: W10243391) Special Order $ 49.98

5 W10284284 Bracket, Door Side (left) Appelez-nous -
5 WPW10581826 Bracket, Door Side (right)   (Replaces: W10284283) Special Order $ 57.11

6 W10825778 Hinge, Door   (Replaces: W10419877) In-Stock Immediately $ 93.89

7 WPW10347598 Assembly, Inner Glass   (Replaces: W10347598) In-Stock Immediately $ 280.76

8 WPW10289076 Door Handle (stainless)   (Replaces: W10289076) Special Order $ 286.81

8 W10284916 Door Handle (black) Special Order $ 212.28

8 W10284917 Door Handle (white) Special Order $ 234.66

8 W10246102A Door Handle (stainless Pro-style Model)   (Replaces: W10246102) Appelez-nous -
9 WP8533988 Screw 8-32 X .750 Tr Sc Black   (Replaces: 8533988) In-Stock Immediately $ 7.16

10 W10502539 Bracket, Upper, Glass Appelez-nous -
11 WPW10416257 Vent, Door Top   (Replaces: W10416257) Special Order $ 237.74

12 WPW10335920 Liner, Door   (Replaces: W10335920) Special Order $ 374.34

13 WPW10323551 Bumper, Rail   (Replaces: W10323551) Special Order $ 7.21

14 W10840861 Spacer   (Replaces: W10517440) Special Order $ 8.89

15 W11082539 Pad, Vent   (Replaces: W10489273) Special Order $ 104.75

16 WPW10517428 Spacer, Vent   (Replaces: W10517428) In-Stock Immediately $ 10.67


    View Diagram in Separate Window     Print Icon   Print Part List

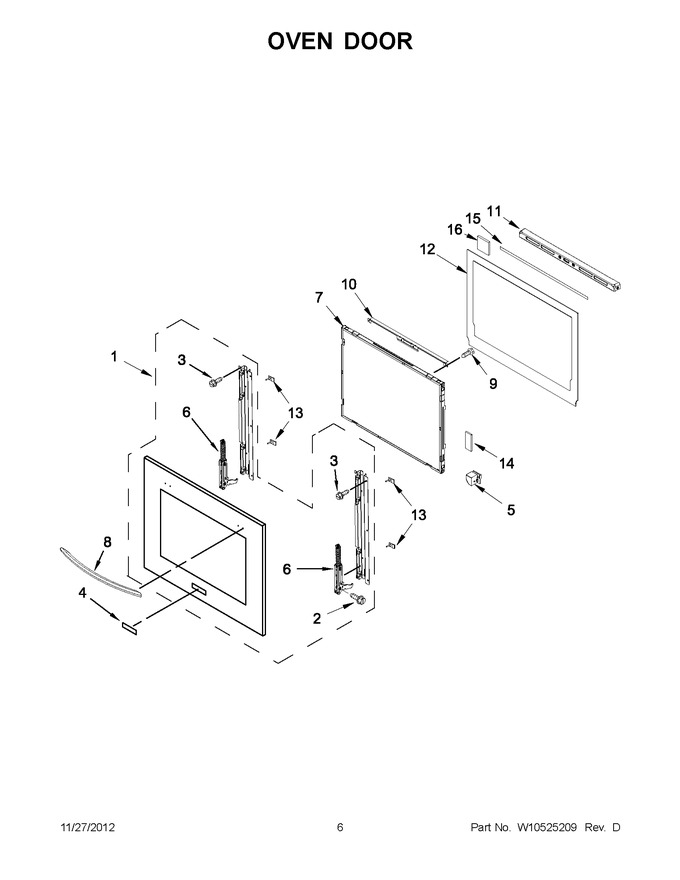

Diagram for KEMS309BSS00
