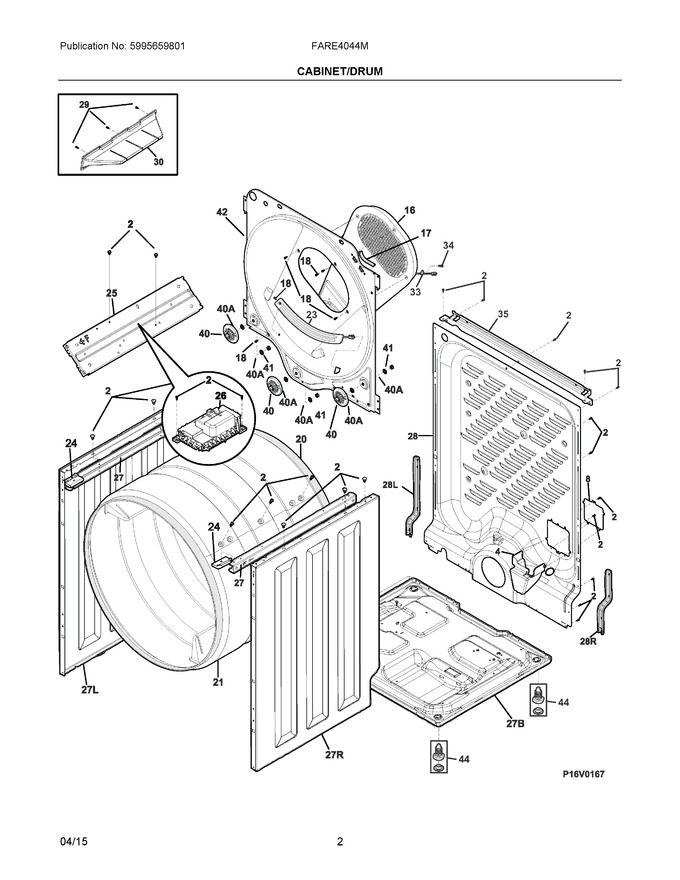

02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 134792200 | Bracket, Mounting, Terminal Block |
|
$ 26.09 | |||||
| 8 | 134694400 | Cover, Terminal Block |
|
$ 72.18 | |||||
| 16 | 134711702 | Duct, Heat, Rear |
|
$ 100.80 | |||||
| 17 | 134792900 | Protector, Edge, Right Top Front, 85.0+/-1.5 |
|
$ 13.46 | |||||
| 18 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | 134705900 | Seal, Felt, Drum |
|
$ 73.45 | |||||
| 21 | 134711910 | Drum, Dryer, Assembly 36 |
|
- | |||||
| 23 | 134786100 | Sensor, Moisture, Assembly |
|
$ 84.27 | |||||
| 24 | 137301700 | Bracket, Front, Top Supp |
|
$ 12.29 | |||||
| 25 | 134912100 | Bracket, Mounting, Main Control Bx |
|
- | |||||
| 26 | 137207900 | Control Board, Pc W/housing |
|
$ 131.95 | |||||
| 27 | 137240400 | Brace, Side Panel, Left Or Right |
|
- | |||||
| 28 | 137506600 | Panel, Backsheet, Rear |
|
$ 215.15 | |||||
| 29 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 30 | 137412310 | Vane, Drum, Fsd |
|
- | |||||
| 33 | 3204267 | Thermostat, Safety |
|
Immediately | $ 53.49 | ||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 35 | 137274600 | Bracket, Rear, Tp, Fsd |
|
$ 44.84 | |||||
| 40 | 5304523155 | Roller, Wheel, Complete Asmy (Replaces: 134715900) |
|
Immediately | $ 77.99 | ||||
| 41 | 134716800 | Nut, 3/8-16 |
|
$ 2.98 | |||||
| 42 | 134712817 | Bulkhead, Rear, Painted |
|
- | |||||
| 44 | 137029700 | Leveling Leg, Screw |
|
$ 18.38 | |||||
| 27B | 134690203 | Base, Dryer (Replaces: 134690200) |
|
$ 273.58 | |||||
| 27L | 134690310 | Panel, Left Side, White |
|
$ 221.03 | |||||
| 27R | 134690410 | Panel, Right Side, White |
|
$ 208.64 | |||||
| 28L | 137029900 | Bracket, Reinforcement, Left, Backsheet |
|
- | |||||
| 28R | 137066800 | Bracket, Reinforcement, Right, Backsheet |
|
- | |||||
| 40A | 134716700 | Washer, Flat |
|
$ 2.12 | |||||
| NI | 134930800 | Wiring Harness, Moisture Sensor |
|
Immediately | $ 48.44 | ||||
| NI | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 | ||||
| NI | 134154100 | Screw, Hex Washer Head, 10-32 X 0.375, Ground |
|
$ 13.46 | |||||
| NIA | 134716200 | Retainer, Roller Wheel, Assembly |
|
$ 3.12 |
