View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum

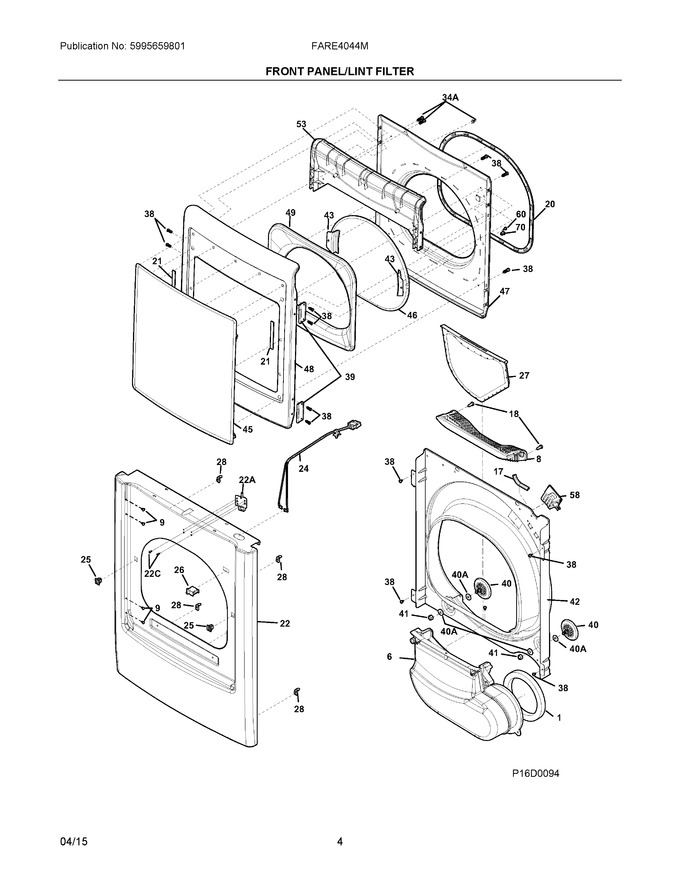

03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137068200 | Seal, Air Duct |
|
$ 14.81 | |||||
| 6 | 134710705 | Duct, Air, Gray |
|
$ 208.95 | |||||
| 8 | 134701320 | Cover, Lint Housing |
|
$ 95.21 | |||||
| 9 | 131633200 | Plug, White |
|
$ 15.90 | |||||
| 17 | 134792900 | Protector, Edge, Right Top Front, 85.0+/-1.5 |
|
$ 13.46 | |||||
| 18 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | 137553402 | Gasket, Door Seal |
|
$ 87.12 | |||||
| 21 | 134407900 | Dampener, Vibration |
|
$ 17.01 | |||||
| 22 | 137365910 | Panel, Front, Fsd |
|
$ 190.42 | |||||
| 24 | 137325800 | Harness, Door Switch Fsd |
|
$ 55.02 | |||||
| 25 | 131658800 | Door Catch, Upper |
|
Immediately | $ 68.38 | ||||
| 26 | 134813601 | Switch, Door, Rectangle, White, With Drum Light |
|
Immediately | $ 33.09 | ||||
| 27 | 134701410 | Filter, Lint, Complete (Replaces: 134701420) |
|
Immediately | $ 74.14 | ||||
| 28 | 137034500 | Clip, Mounting, Cabinet Front |
|
$ 43.24 | |||||
| 38 | 137361500 | Screw 8-18x0.711 Combo |
|
$ 7.79 | |||||
| 39 | 137365610 | Hinge, Piano Style |
|
- | |||||
| 40 | 5304523155 | Roller, Wheel, Complete Asmy (Replaces: 134715900) |
|
Immediately | $ 77.99 | ||||
| 41 | 134716800 | Nut, 3/8-16 |
|
$ 2.98 | |||||
| 42 | 134696105 | Bulkhead, Panel, Front |
|
$ 227.17 | |||||
| 43 | 134559300 | Bracket, Door Glass |
|
$ 11.34 | |||||
| 45 | 137367600 | Lens, W/film, Door |
|
$ 359.15 | |||||
| 46 | 134801700 | Glass, Gasket, Door Asmy |
|
- | |||||
| 47 | 137349110 | Door, Window Inner |
|
- | |||||
| 48 | 137349010 | Door, Outer Window |
|
$ 213.99 | |||||
| 49 | 137326300 | Transition Ring, Fsd |
|
- | |||||
| 53 | 137274200 | Handle, Door, Fsd |
|
$ 69.09 | |||||
| 58 | 131843500 | Lamp Assy, Drum Light, W/mtg Bracket |
|
$ 73.00 | |||||
| 60 | 131243700 | Screw, Ph, 8-18ab X 0.375 (Replaces: 134529600) |
|
$ 3.36 | |||||
| 70 | 134417500 | Plug, Rectangular, White |
|
$ 16.22 | |||||
| 34A | 137285100 | Screw, Pan Head, #8-18x.750 |
|
$ 17.53 | |||||
| 40A | 134716700 | Washer, Flat |
|
$ 2.12 | |||||
| NIA | 134716200 | Retainer, Roller Wheel, Assembly |
|
$ 3.12 | |||||
| NIA | 5303207102 | Strike, Door (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| NIA | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 |
