SELECT A DIAGRAM

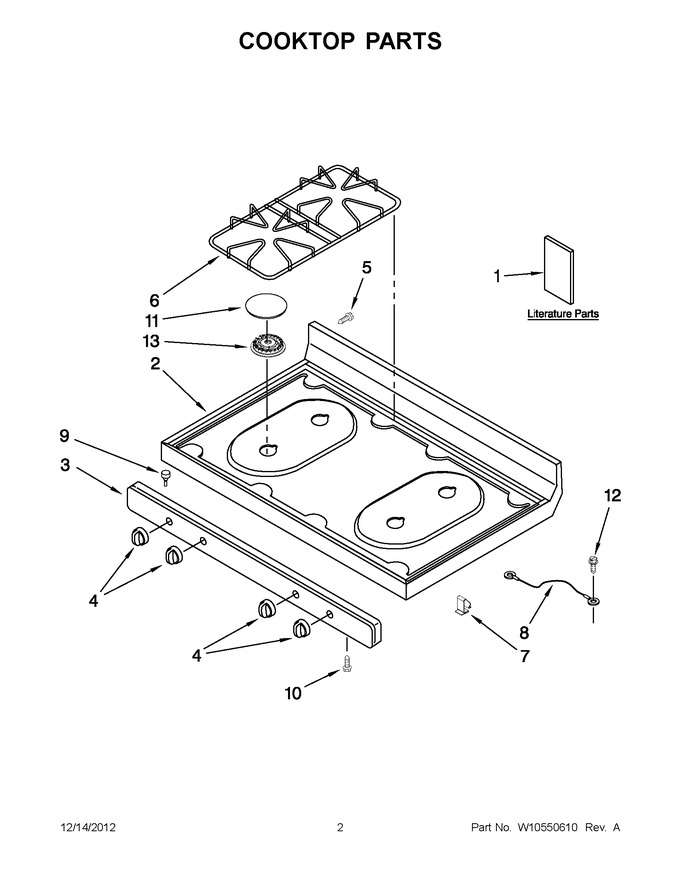

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven And Broiler Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10477534		Instructions, Installation		Appelez-nous	-
1	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10142327		Tech Sheet		Appelez-nous	-
2	WP98017619W		Cooktop (white)   (Replaces: 98017619W)				$ 311.16
2	98017619B		Cooktop (black)		Appelez-nous	-
3	W10297384		Panel, Manifold (black)		Appelez-nous	-
3	W10297372		Panel, Manifold (white)		Appelez-nous	-
4	W10243961		Knob, Burner (black)		Appelez-nous	-
4	W10243959		Knob, Burner (white)		Appelez-nous	-
5	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
6	WPW10180089		Grate, Burner (black)   (Replaces: W10180089)				$ 42.40
6	WPW10180089		Grate, Burner (gray)   (Replaces: W10219702)				$ 42.40
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 98014544)				$ 74.50
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
11	WP98017461		Cap, Burner (cumberland Grey)   (Replaces: 98017465)				$ 60.75
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 6.98
13	WPW10243396		Burner, Standard   (Replaces: W10243396)				$ 81.38

    View Diagram in Separate Window       Print Part List
