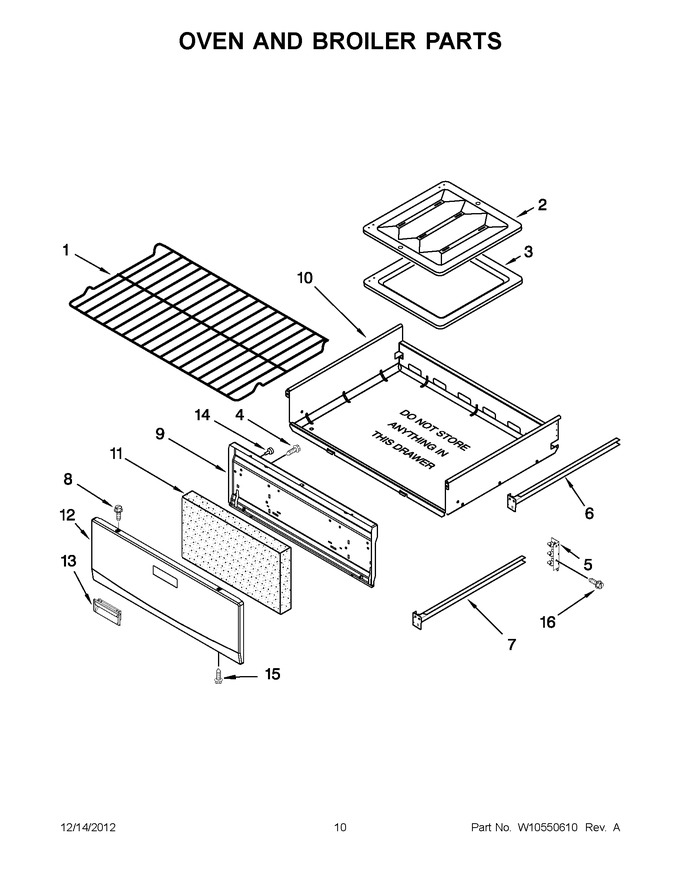

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10312013 | Rack, Oven |
|
$ 52.65 | |||||
| 2 | WP98003480 | Grill, Broiler (Replaces: 98003480) |
|
$ 89.69 | |||||
| 3 | WP98016005 | Pan, Broiler (Replaces: 98016005) |
|
$ 77.97 | |||||
| 4 | 8533843 | Screw |
|
$ 36.27 | |||||
| 5 | 98016666 | Support, Tray (right Hand) |
|
- | |||||
| 5 | 98016664 | Support, Tray (left Hand) |
|
- | |||||
| 6 | WPW10206640 | Guide, Fixed (left Hand) (Replaces: W10206640) |
|
$ 14.40 | |||||
| 6 | WPW10206639 | Guide, Fixed (right Hand) (Replaces: W10206639) |
|
$ 14.40 | |||||
| 7 | W10206642 | Guide, Mobile (left Hand) |
|
$ 19.14 | |||||
| 7 | WPW10206641 | Guide, Mobile (right Hand) (Replaces: W10206641) |
|
$ 14.40 | |||||
| 8 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 6.98 | ||||
| 8 | 3196166 | Screw (white) (Replaces: 98006727) |
|
$ 6.31 | |||||
| 9 | W10162118 | Liner, Door |
|
- | |||||
| 10 | 98017784 | Drawer, Broiler |
|
- | |||||
| 11 | W10137230 | Insulation, Broiler Door |
|
- | |||||
| 12 | W10175152 | Panel, Broiler Door (stainless) |
|
- | |||||
| 12 | W10174742 | Panel, Broiler Door (black) |
|
- | |||||
| 12 | W10174741 | Panel, Broiler Door (white) |
|
- | |||||
| 13 | WP3405190 | Handle, Broiler Door (black) (Replaces: 98015643) |
|
$ 64.67 | |||||
| 13 | WP3405184 | Handle, Broiler Door (white) (Replaces: 98008486) |
|
$ 68.41 | |||||
| 14 | 98004052 | Bumper, Door |
|
- | |||||
| 15 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 16 | WP98008545 | Screw, Trim (Replaces: 98008545) |
|
$ 15.94 |
