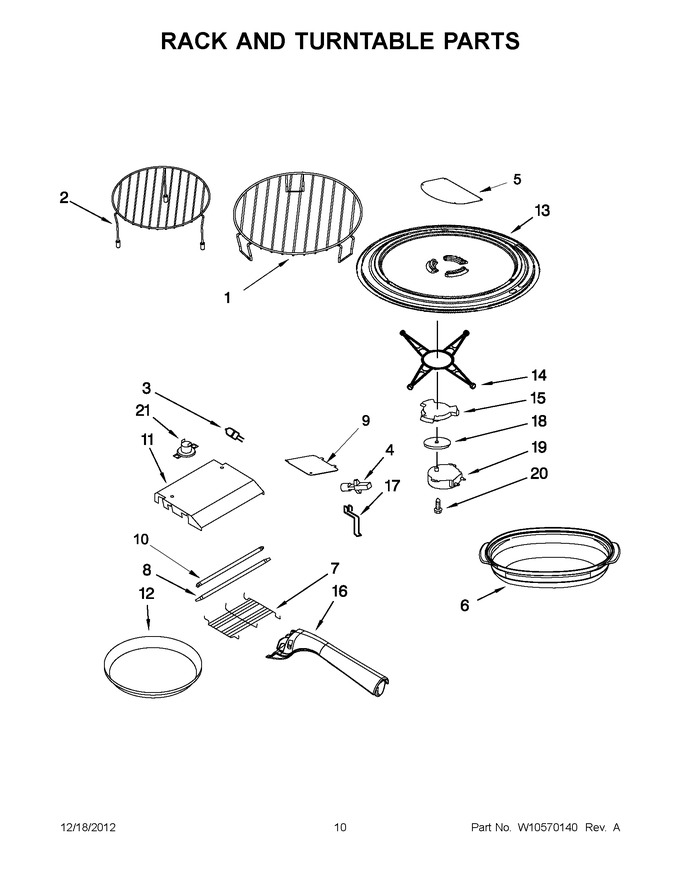

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205995 | Rack, Convection |
|
- | |||||
| 2 | 8206264 | Rack, Grill |
|
- | |||||
| 3 | 8204670 | Lamp, Halogen |
|
Immediately | $ 25.94 | ||||
| 4 | W10113781 | Holder, Lamp Grill |
|
$ 9.43 | |||||
| 5 | W10282660 | Plate, Mica |
|
$ 86.90 | |||||
| 6 | W10660052 | Steamer (Replaces: 8206451) |
|
Immediately | $ 25.73 | ||||
| 7 | 8205239 | Grid, Protection |
|
- | |||||
| 8 | WPW10510203 | Heater, Quartz Grill (Replaces: W10510203) |
|
$ 196.97 | |||||
| 9 | 8206476 | Lid, Lamp |
|
$ 7.51 | |||||
| 10 | WP8184837 | Element, Grill Halogen (Replaces: 8184837) |
|
$ 273.75 | |||||
| 11 | 8206024 | Cover, Insulation (grill) |
|
- | |||||
| 12 | W10748097 | Plate, Crisp (Replaces: 8205996) |
|
$ 47.57 | |||||
| 13 | W10113773 | Turntable |
|
- | |||||
| 14 | 8206222 | Ring, Turntable Softstart |
|
$ 30.43 | |||||
| 15 | 8205994 | Driver, Turntable |
|
$ 29.54 | |||||
| 16 | W10851464 | Handle, Crisp Plate (Replaces: W10106520) |
|
$ 22.35 | |||||
| 17 | 8206034 | Clip, Cavity Lamp |
|
- | |||||
| 18 | 8184109 | Spacer (Replaces: 8206101) |
|
$ 6.26 | |||||
| 19 | W10143959 | Motor, Turntable |
|
- | |||||
| 20 | 4393832 | Screw D4 X 10 Torx Head |
|
$ 11.55 | |||||
| 21 | W11553234 | Thermostat, Grill (Replaces: 8206025) |
|
$ 37.45 |
