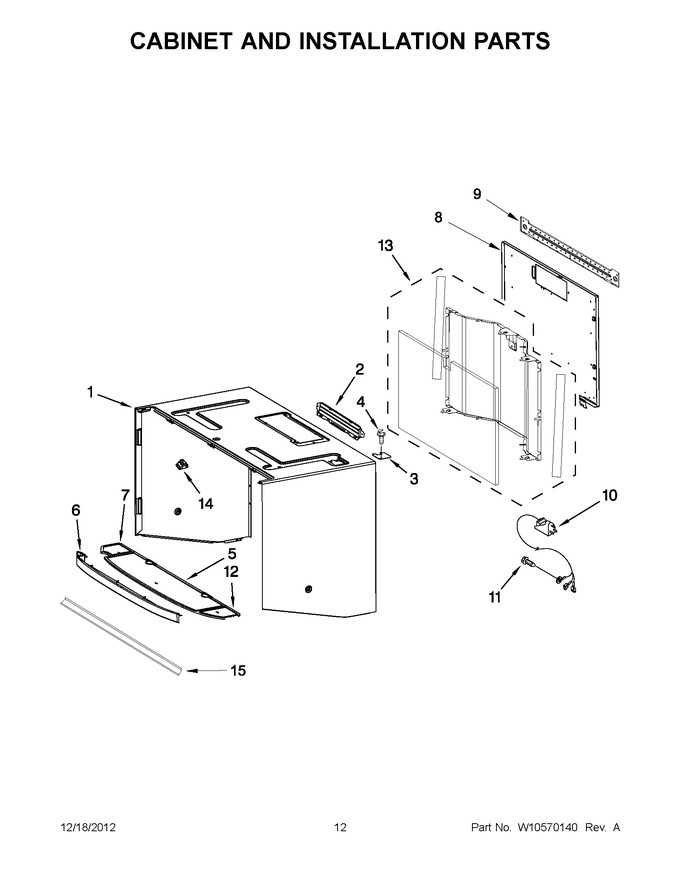

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222514 | Case, Outer (white) |
|
$ 131.33 | |||||
| 1 | W10244733 | Case, Outer (black) |
|
- | |||||
| 1 | W10283383 | Case, Outer (biscuit) |
|
- | |||||
| 2 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 3 | 8184897 | Cover, Power Cord |
|
- | |||||
| 4 | 4393472 | Screw |
|
- | |||||
| 5 | 8206475 | Vent Screen, Top Center |
|
$ 195.44 | |||||
| 6 | W10143735 | Support, Vent Screen (black) |
|
- | |||||
| 6 | 8206015 | Support, Vent Screen (biscuit) |
|
- | |||||
| 6 | 8206011 | Support, Vent Screen (white) |
|
$ 53.98 | |||||
| 7 | 8206207 | Vent Screen Left Side |
|
$ 97.78 | |||||
| 8 | 8206051 | Plate, Back Hardware |
|
$ 51.26 | |||||
| 9 | W10515503 | Plate, Mounting |
|
$ 11.75 | |||||
| 10 | W10282546 | Cord, Power |
|
- | |||||
| 11 | 4393836 | Screw |
|
- | |||||
| 12 | 8206206 | Vent Screen Right Side |
|
$ 173.30 | |||||
| 13 | W10115570 | Insulation Assembly |
|
- | |||||
| 14 | W10110862 | Mounting, Nut |
|
- | |||||
| 15 | 8205980 | Deflector, Air |
|
$ 85.38 | |||||
| NI | W10113780 | Miscellaneous, Harness, User Interface Ribbon Cable |
|
- | |||||
| NI | W10470191 | Miscellaneous, Harness, Membrane To User Interface (Replaces: 8206468) |
|
$ 130.68 | |||||
| NI | W10244770 | Miscellaneous, Harness, Grill Element And Heater |
|
- | |||||
| NI | W10112290 | Miscellaneous, Harness, Communication Pcba |
|
- | |||||
| NI | W10553076 | Miscellaneous, Harness, Cooktop Lamp And Turntable (Replaces: 8206487) |
|
- | |||||
| NI | W10451315 | Miscellaneous, Harns, Wire Grill Element |
|
- | |||||
| NI | 8205979 | Miscellaneous, Hardware, Installation |
|
$ 111.76 | |||||
| NI | 8205274 | Miscellaneous, Template, Upper |
|
- | |||||
| NI | W10517169 | Miscellaneous, Template, Back Wall |
|
- | |||||
| NI | W10451212 | Miscellaneous, Main Harness |
|
- | |||||
| NI | W10113776 | Miscellaneous, Harness, Hood Fan |
|
- | |||||
| NI | 8206185 | Miscellaneous, Wire, Ground |
|
- | |||||
| NI | W10113777 | Miscellaneous, Harness, Inverter |
|
- | |||||
| NI | W10470173 | Miscellaneous, Harness, Control (Replaces: 8206189) |
|
$ 16.76 | |||||
| NI | W10470175 | Miscellaneous, Harness, Hood Light (Replaces: W10113778) |
|
$ 14.30 | |||||
| NI | W10113779 | Miscellaneous, Harness, User Interface Ribbon Cable |
|
- |
