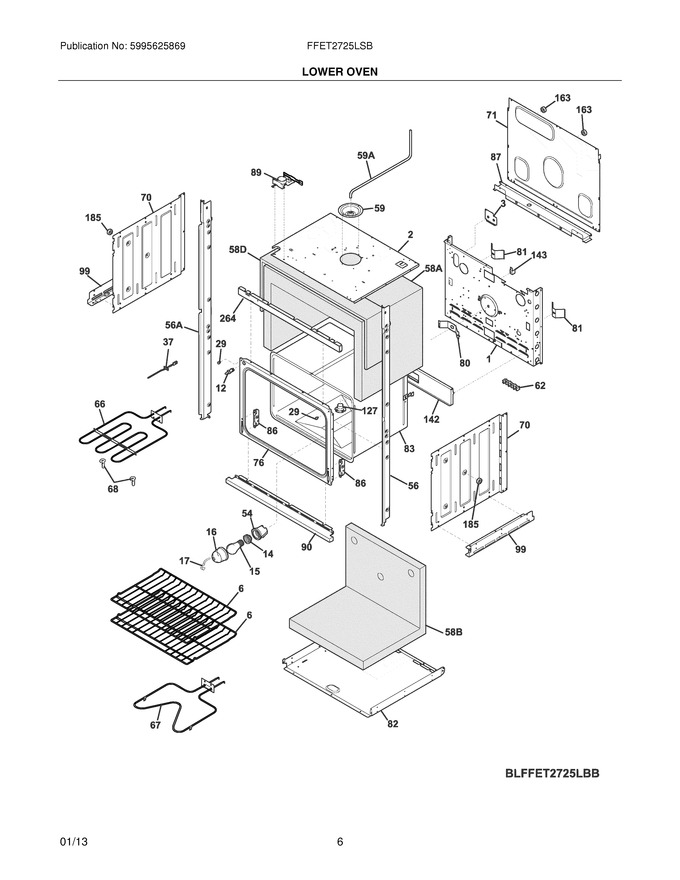

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259213		Back,main		Appelez-nous	-
2	318570510		Panel,insualtion ,top		Appelez-nous	-
3	318402800		Plate,cover				$ 9.23
6	318922305		Rack,oven		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
54	318222400		Housing,oven Light				$ 58.22
56	318903676		Trim,side Filler ,black ,rh				$ 126.86
59	318578902		Adapter,flue				$ 31.29
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260001		Panel,rear Box		Appelez-nous	-
76	318056224		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258768		Shield,insulation ,lower		Appelez-nous	-
83	318261509		Liner,oven Assy		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)   (Replaces: 318561101)				$ 21.23
87	318260623		Bracket,cable Mtg.		Appelez-nous	-
90	318259861		Trim,base ,stainless		Appelez-nous	-
99	318256203		Bracket,side ,bottom ,(2)		Appelez-nous	-
127	318317105		Adapter Assembly,vent Tube ,w/converter				$ 7.65
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257851		Trim,oven ,black ,front		Appelez-nous	-
56A	318903677		Trim,side Filler ,black ,lh		Appelez-nous	-
58A	318386114		Insulation,oven Wrapper		Appelez-nous	-
58B	318285060		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
59A	318579203		Tube,exhaust ,lower		Appelez-nous	-
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255606		Element,broil ,3400w			Immediately	$ 197.39
F67	318255103		Element,bake ,2300w				$ 194.20
F89	318261226		Motor,latch Assy				$ 153.41
FNI	5304517329		Harness,wiring ,speed Sensor   (Replaces: 318582630)				$ 42.47
FNI	318199787		Wiring Harness,latch ,no Bas		Appelez-nous	-
FNI	5304506984		Box & Wires Assy   (Replaces: 318394442)				$ 150.17
FNI	318572762		Harness,wiring ,main		Appelez-nous	-
NI	318268099		Insulation		Appelez-nous	-
NI	316095800		Clip,hold Down				$ 9.93
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut,10-32   (Replaces: 5303323144)				$ 11.34
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw,8-18 X 13/32				$ 8.66
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5303323136		Screw Ground		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
