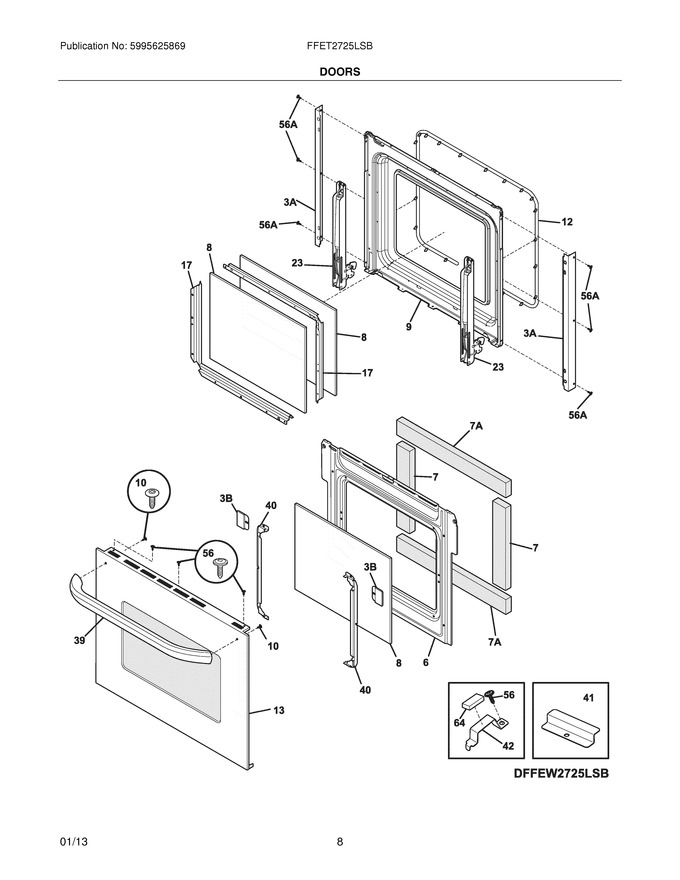

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260511		Baffle,door		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318259671		Liner,door				$ 143.33
10	5303311174		Screw,10-24 X 3/8			Immediately	$ 14.89
12	318053137		Gasket,oven Door Seal		Appelez-nous	-
13	318304172		Door Assembly,glass/steel ,black/stainless,w/trim		Appelez-nous	-
17	318264700		Spacer,glass ,(2)		Appelez-nous	-
23	318567105		Hinge,oven Door ,(2)				$ 91.82
39	318927000		Handle,door ,stainless				$ 186.48
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262104		Cover,rear Door ,black ,(2)				$ 24.99
56A	5304476599		Screw,8-18 X 3/8				$ 3.36
7A	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
