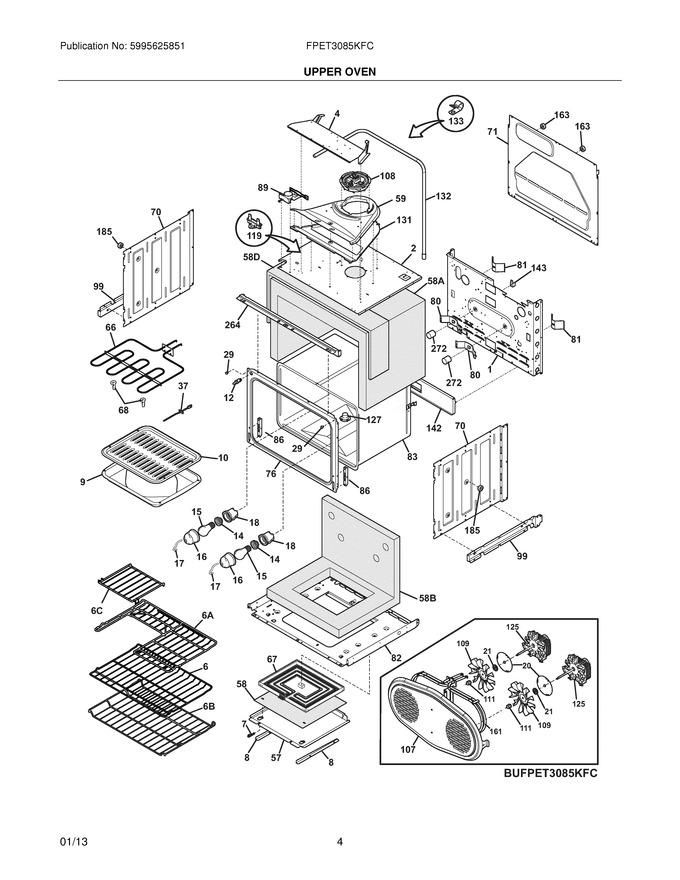

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259224		Back,main		Appelez-nous	-
2	318570500		Panel,insualtion ,top				$ 86.89
4	318577700		Panel,mounting		Appelez-nous	-
6	318922301		Rack,oven   (Replaces: 318922315)			Immediately	$ 163.05
7	318368300		Pin,locking ,(2)				$ 9.93
8	318361801		Bracket,element ,(2)		Appelez-nous	-
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
29	316517600		Spacer,oven Door				$ 12.05
57	318361610		Panel,service				$ 89.82
58	318330501		Insulation,service Panel ,12.47 X 14.77				$ 35.32
59	318570600		Duct,cooling Fan		Appelez-nous	-
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258775		Shield,insulation ,lower				$ 116.87
83	318261452		Liner,oven Assy				$ 179.95
86	318561100		Receptacle,hinge ,(2)   (Replaces: 318561101)				$ 21.23
99	318252804		Support,side		Appelez-nous	-
107	318550200		Cover,fan ,dual				$ 97.81
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318317105		Adapter Assembly,vent Tube ,w/converter				$ 7.65
131	318574801		Bottom,cooling Duct		Appelez-nous	-
132	318579102		Tube,exhaust ,upper		Appelez-nous	-
133	318591500		Clamp,exhaust Tube		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257706		Trim,oven ,black ,front		Appelez-nous	-
272	318249412		Tube,protector				$ 8.24
58A	318386113		Insulation,oven Wrapper		Appelez-nous	-
58B	318926906		Insulation,wrapper ,back And Bottom		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
6A	318926803		Rack,half ,oven				$ 165.48
6B	318919810		Rack,oven		Appelez-nous	-
6C	318929702		Insert,half Rack				$ 100.46
F108	318575604		Motor,cooling Fan				$ 135.35
F119	5304506123		Thermal Cutoff,121 Deg. ,(2)   (Replaces: 318944000)				$ 31.86
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F125	5304463302		Motor,fan   (Replaces: 318398201)			Immediately	$ 259.95
F161	318535300		Element,convection ,duo				$ 232.26
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255807		Element,broil ,4000w				$ 323.19
F67	318601604		Element,hidden Bake ,upper Oven			Immediately	$ 260.38
F89	318261226		Motor,latch Assy				$ 153.41
FNI	318572723		Harness,wiring ,main ,upper Oven		Appelez-nous	-
FNI	318231870		Wiring Harness,bake Element				$ 83.42
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	318268099		Insulation		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw,8-18 X 13/32				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304476994		Screw,8-18 X 1/4 ,(2)		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5303308450		Screw,8 X 0.375 ,(10)		Appelez-nous	-
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	5304455945		Spacer,pad		Appelez-nous	-
NI	316095800		Clip,hold Down				$ 9.93
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318579001		Bracket,wire				$ 11.08
