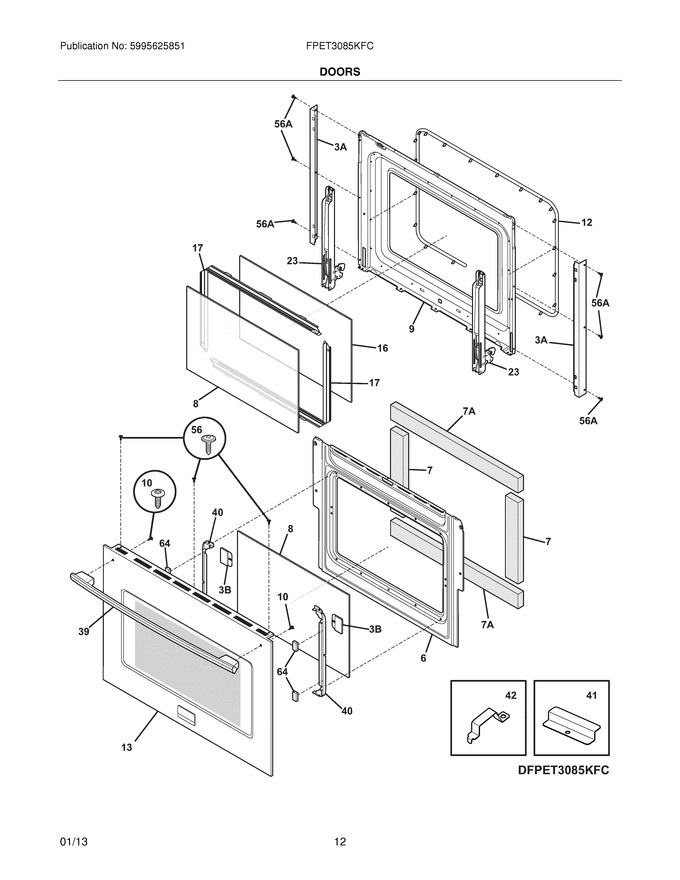

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260531		Baffle,door				$ 79.05
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318411646		Liner,oven Door				$ 119.60
10	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
12	318053132		Gasket,oven Door Seal			Immediately	$ 159.56
13	318927842		Door Assembly,outer ,steel/glass ,stainless,w/badge				$ 308.33
13	318927838		Door Assembly,outer ,steel/glass ,stainless/black,lower Door				$ 319.94
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,(2)   (Replaces: 318264724)				$ 72.05
23	318567100		Hinge,door ,upper Oven ,(2)				$ 84.74
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262111		Cover,rear Door ,black ,(2)				$ 54.60
56A	5304476599		Screw,8-18 X 3/8				$ 3.36
7A	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303323277		Screw,8-18 X 13/32				$ 8.66
