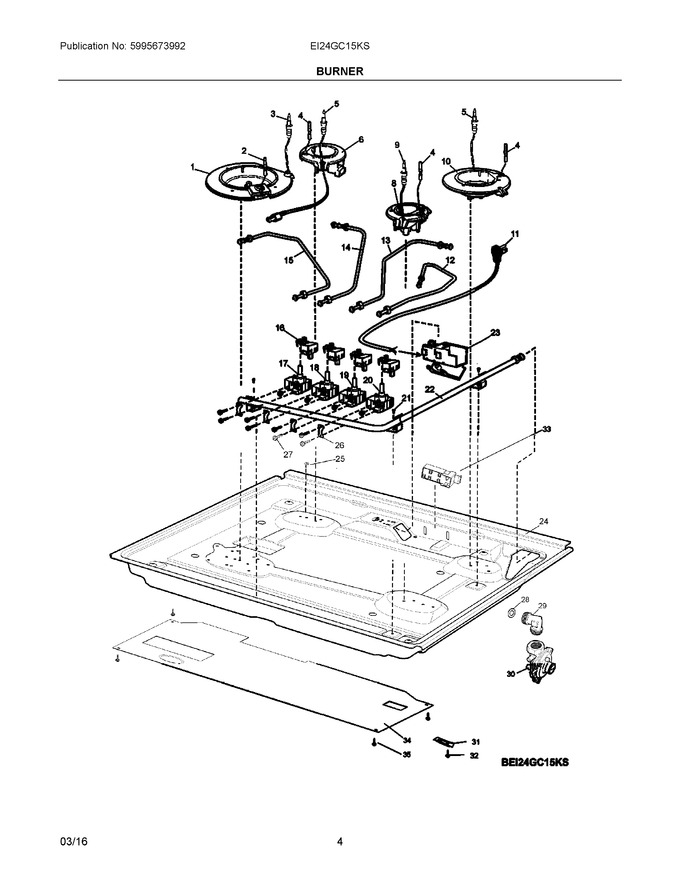

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305621304		Burner Assembly, Left Front, W/orifice		Appelez-nous	-
2	305523001		Spark Ignitor, Burner, Left Front				$ 11.60
3	357056402		Thermocouple, Burner, Left Front				$ 36.38
4	357069802		Spark Ignitor, Burner, (3)				$ 18.38
5	357056302		Thermocouple, Burner, (2)				$ 45.26
6	305621302		Burner Assembly, Left Rear, W/orifice		Appelez-nous	-
8	305621301		Burner Assembly, Right Front, W/orifice		Appelez-nous	-
9	357056301		Thermocouple, Burner, Right Front		Appelez-nous	-
10	305621303		Burner Assembly, Right Rear, W/orifice		Appelez-nous	-
11	305574900		Power Cord, Electrical, Supply		Appelez-nous	-
12	305429600		Tube, Burner, Right Front		Appelez-nous	-
13	305429500		Tube, Burner, Right Rear		Appelez-nous	-
14	305429400		Tube, Burner, Left Rear		Appelez-nous	-
15	305429300		Tube, Burner, Left Front		Appelez-nous	-
16	305574300		Harness Assy, Ignition, W/4 Switches				$ 84.37
17	305448615		Valve, Burner, Left Front				$ 86.85
18	305448613		Valve, Burner, Left Rear		Appelez-nous	-
19	305448614		Valve, Burner, Right Rear				$ 86.85
20	305448612		Valve, Burner, Right Front		Appelez-nous	-
21	354324202		Screw, Pan T10 Zp, 4 X 6, (3), Spiral		Appelez-nous	-
22	305380801		Manifold, Tube		Appelez-nous	-
23	305574500		Box, Ignitor Module, & Terminal				$ 17.87
24	305380003		Box, Burner		Appelez-nous	-
25	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
26	305429100		Clamp, Valve Mtg, (4)		Appelez-nous	-
27	305517500		Screw, Hex Zc, M4 X 16, (8)				$ 6.82
28	115009011		Washer, Sealing		Appelez-nous	-
29	305458401		Elbow, Gas Regulator, 1/2				$ 27.08
30	318122707		Regulator, Pressure   (Replaces: 318122712)				$ 121.19
31	353028401		Clamp, Burner Box, (4)		Appelez-nous	-
32	354320008		Screw, Pan Z/p, #8 X 3/4", (4)		Appelez-nous	-
33	808608802		Module, Spark   (Replaces: 316262401)			Immediately	$ 82.93
34	305574600		Shield, Protective		Appelez-nous	-
35	305309702		Screw, Phil, 4.2 X 9.5, (4)		Appelez-nous	-
NI	305387300		Kit Assy, Lp Conversion				$ 25.88
NI	354308101		Clip, Spark Ignitor, (4)				$ 11.29
