01 - Cover Sheet

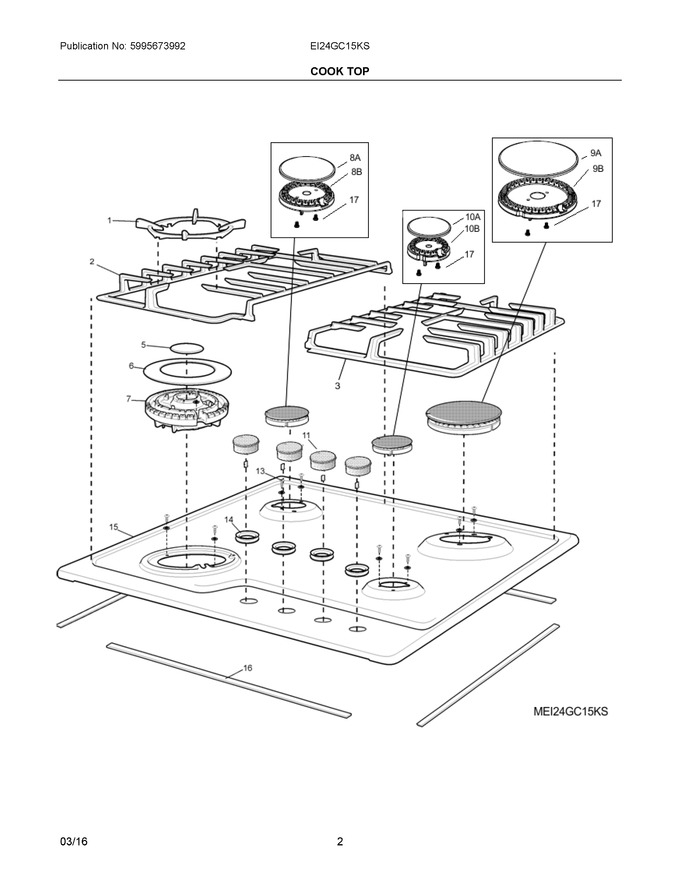

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305439800		Trivet, Wok		Appelez-nous	-
2	305430500		Grate, Burner, Lh, W/feet		Appelez-nous	-
3	305430600		Grate, Burner, Rh, W/feet		Appelez-nous	-
5	305431603		Cap, Burner, Left Front, Inner				$ 20.04
6	305431700		Cap, Burner, Left Front, Outer				$ 43.24
7	357725909		Burner Head, Left Front				$ 98.70
11	305442801		Knob, Burner Valve, (4)				$ 25.45
13	354320301		Screw, Pan T10 Zp Ptfe, 2.9 X 13, (8)				$ 2.70
14	355611201		Grommet, Burner Knob, (4)		Appelez-nous	-
15	305547800		Main Top, Stainless		Appelez-nous	-
16	356518907		Gasket, Main Top, (4 Pack)		Appelez-nous	-
17	305338605		Screw, M3 X 5, (6)				$ 2.46
10A	305381400		Cap, Burner, Right Front				$ 22.73
10B	354013804		Burner Head, Right Front				$ 24.10
8A	305381500		Cap, Burner, Left Rear		Appelez-nous	-
8B	354013704		Burner Head, Left Rear		Appelez-nous	-
9A	305381600		Cap, Burner, Right Rear		Appelez-nous	-
9B	354013607		Burner Head, Right Rear		Appelez-nous	-
NI	305450200		Clip, Arrow Ignite, Black, (2)		Appelez-nous	-
