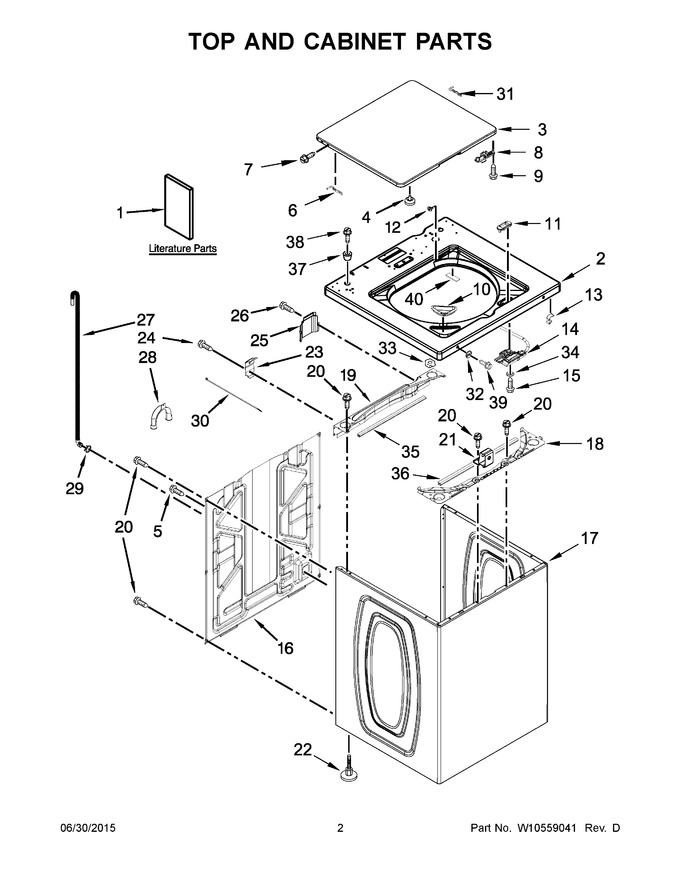

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10474263 | Installation Instructions |
|
- | |||||
| 2 | W10461169 | Top (white) |
|
- | |||||
| 3 | WPW10338625 | Assembly, Lid And Bumper (white) (Replaces: W10251302) |
|
Immediately | $ 332.64 | ||||
| 4 | W11252488 | Bumper, Lid (Replaces: W10525268) |
|
$ 5.90 | |||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.07 | ||||
| 6 | WP91770 | Hinge, Lid (left Hand) (Replaces: 91770) |
|
$ 24.71 | |||||
| 7 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 6.47 | ||||
| 8 | WPW10240513 | Strike, Lid Lock (white) (Replaces: W10240513) |
|
Immediately | $ 35.61 | ||||
| 9 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 6.47 | ||||
| 10 | W10515627 | Dispenser, Bleach |
|
$ 67.76 | |||||
| 11 | WPW10392041 | Bezel, Lid Lock (white) (Replaces: W10392041) |
|
Immediately | $ 6.86 | ||||
| 12 | WP21258 | Bearing, Lid Hinge (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.19 | |||||
| 14 | WPW10482836 | Latch, Lid Lock Assembly (Replaces: W10482836) |
|
Immediately | $ 105.06 | ||||
| 15 | W11679611 | Screw (Replaces: W10588613) |
|
$ 6.17 | |||||
| 16 | W11486091 | Panel, Rear (Replaces: W10250884) |
|
Immediately | $ 280.90 | ||||
| 17 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 412.97 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W10215098) |
|
$ 68.39 | |||||
| 19 | W11712680 | Brace, Cabinet Top - Rear (Replaces: W10512626) |
|
Immediately | $ 89.04 | ||||
| 20 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.07 | ||||
| 21 | W10461182 | Lock, Top |
|
$ 11.46 | |||||
| 22 | WPW10687506 | Foot, Leveling (Replaces: W10397994) |
|
Immediately | $ 22.35 | ||||
| 23 | W10461176 | Hinge, Top |
|
$ 14.95 | |||||
| 24 | WP489128 | Screw (Replaces: W10142728) |
|
$ 9.79 | |||||
| 25 | W10461180 | Cover, Harness |
|
- | |||||
| 26 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 6.98 | ||||
| 27 | W11244231 | Hose, Outer Drain Assembly (Replaces: W10221546) |
|
Immediately | $ 28.86 | ||||
| 28 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 71.58 | |||||
| 29 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 30 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.11 | |||||
| 31 | WP54583 | Hinge, Lid (right Hand) (Replaces: 54583) |
|
$ 26.60 | |||||
| 32 | W10461181 | Bushing-top, Screw |
|
$ 16.13 | |||||
| 33 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 34 | W10318627 | O-ring |
|
$ 14.53 | |||||
| 35 | W10521454 | Brace-guard, Cabinet Rear Top |
|
- | |||||
| 36 | W10521453 | Brace-guard, Cabinet Front Top |
|
- | |||||
| 37 | 356674 | Cone, Wedge |
|
$ 33.19 | |||||
| 38 | 3353994 | Bolt |
|
- | |||||
| 39 | W11170603 | Screw (Replaces: W10486616) |
|
- | |||||
| 40 | W11312189 | Pad (Replaces: W10684257) |
|
- | |||||
| 1A | W10531642 | Wiring Diagram |
|
- | |||||
| 1B | W10554748 | Tech Sheet |
|
- | |||||
| 1C | W10474315 | Energy Guide |
|
- | |||||
| 1D | 8316532 | Instructions, Coin Kit |
|
- |
