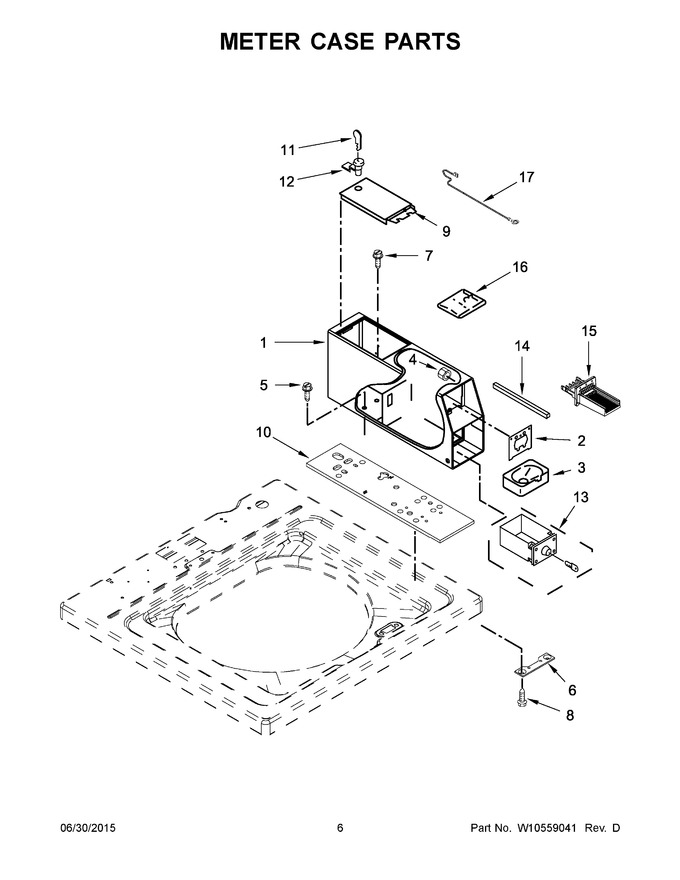

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10549814 | Meter Case (Replaces: W10549814) |
|
$ 332.94 | |||||
| 2 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 26.00 | ||||
| 3 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 66.78 | ||||
| 4 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 5 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.41 | |||||
| 6 | 3347825 | Plate, Mounting |
|
- | |||||
| 7 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 8 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 9 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 95.29 | |||||
| 10 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 11 | WPW10114740 | Key, Access Door (Replaces: W10114740) |
|
$ 117.85 | |||||
| 12 | W11315637 | Assembly, Cam & Security Lock (Replaces: 8316526) |
|
Immediately | $ 36.42 | ||||
| 13 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 160.25 | ||||
| 14 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 67.13 | ||||
| 15 | W11126319 | Coin Slide (vertical 8) (Replaces: W10547316) |
|
Immediately | $ 279.80 | ||||
| 16 | 8316524 | Kit, Chute Decal |
|
- | |||||
| 17 | W10846503 | Jumper-ground, Coin Mechanism (Replaces: W10623854) |
|
$ 16.77 |
