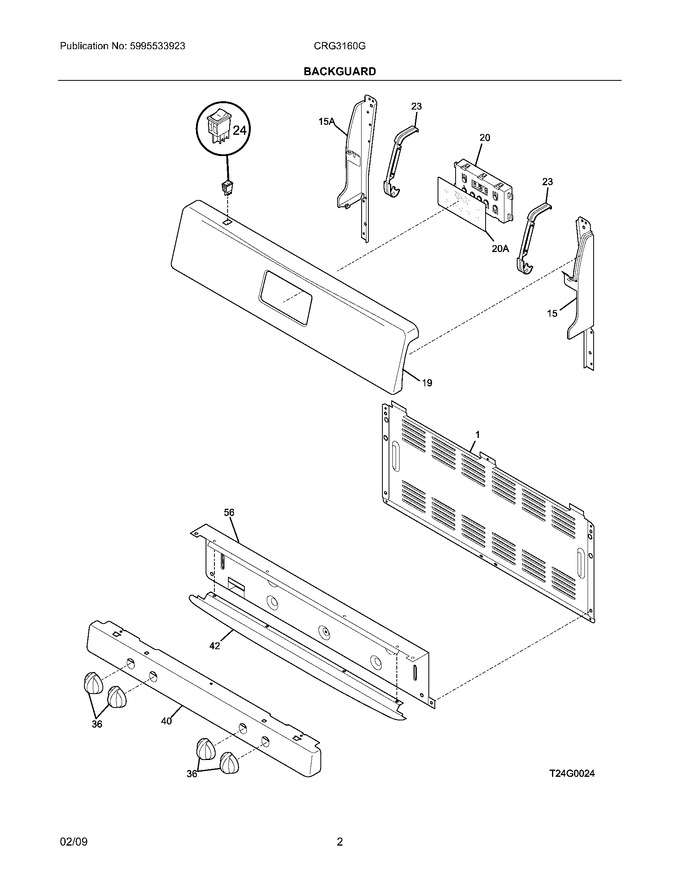

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
15	316411407		Support,backguard ,bisque ,rh		Appelez-nous	-
19	316445292		Panel,backguard ,bisque		Appelez-nous	-
23	316441600		Bracket-clock Mtg,black				$ 20.48
36	316220003		Knob,top Valve ,bisque ,(4)				$ 54.86
40	316447379		Panel,manifold ,bisque		Appelez-nous	-
42	316270602		Trim,extrusion ,tan		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316411406		Support,backguard ,bisque ,lh				$ 90.30
20A	316220702		Overlay,clock ,bisque		Appelez-nous	-
F20	5304518661		Clock/timer,electronic ,es100   (Replaces: 316455410)			Immediately	$ 148.07
F24	316448702		Switch,rocker ,bisque ,oven Light		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
