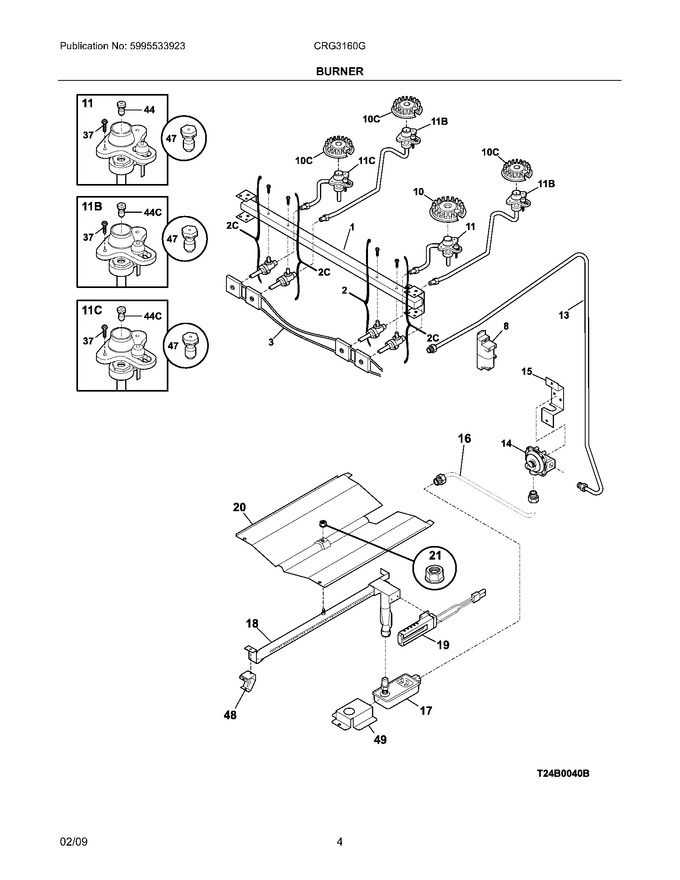

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	316212300		Burner,sealed ,12k				$ 105.95
13	316545800		Tube,3/8 ,aluminum , Rgltr To Manf ,with Fittings		Appelez-nous	-
14	316091708		Controller-regulator Lp				$ 115.03
15	316091600		Bracket-regulator				$ 73.56
20	316496001		Baffle,oven Burner				$ 78.33
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
44	316237905		Orifice,top Burner ,10k ,lp		Appelez-nous	-
47	GRLP3		Lp Conversion Kit,w/instructions				$ 57.11
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	316416300		Bracket,safety Valve		Appelez-nous	-
44C	316237906		Orifice,top Burner ,8k ,lp				$ 86.10
F1	316446800		Pipe,manifold		Appelez-nous	-
F10C	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F11	316237804		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11B	316237703		Ignitor/orifice Assy.,top Burner ,rear ,8k,w/holder,tube		Appelez-nous	-
F11C	316237803		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F16	316065006		Tube-valve To Rgltr,3/8   (Replaces: 316436500)				$ 122.09
F17	3203459		Valve-safety				$ 303.64
F18	316114300		Burner,oven				$ 169.88
F19	5304509706		Ignitor,oven Kit ,w/nut & Instr   (Replaces: 316489402)			Immediately	$ 189.59
F2	5303935240		Valve,10k Top Burner ,w/mtg Screw		Appelez-nous	-
F2C	5303935241		Valve,8k Top Burner ,w/mtg Screw		Appelez-nous	-
F3	316219020		Wiring Harness,w/igntr Switch				$ 47.25
F8	5304505695		Module,spark   (Replaces: 316135702)			Immediately	$ 68.16
FNI	316526901		Harness,ignitor				$ 110.78
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316443200		Bracket-support		Appelez-nous	-
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316248105		Instructions,lp Kit		Appelez-nous	-
