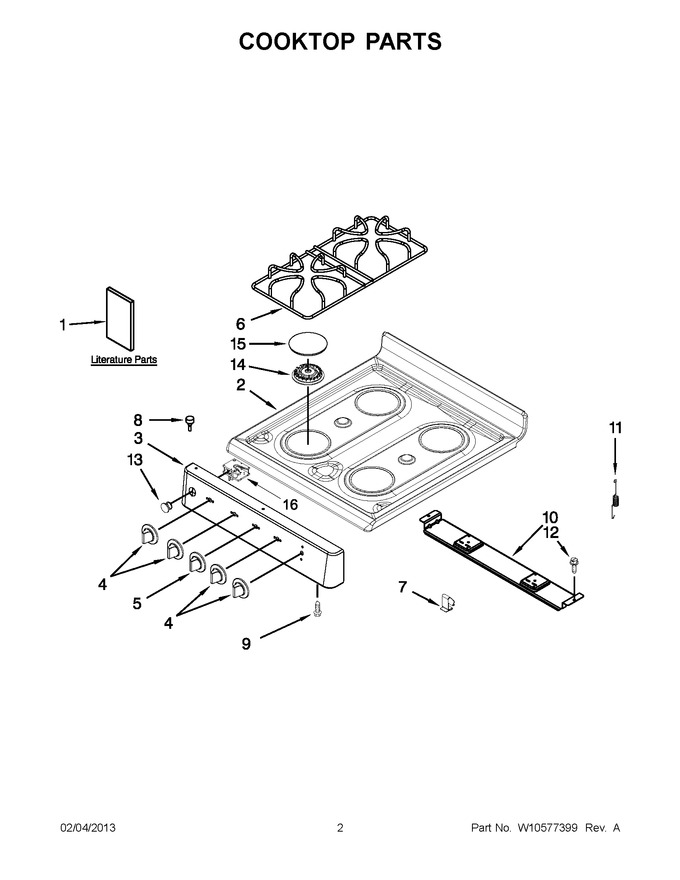

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven And Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10539409		Tech Sheet		Appelez-nous	-
1	W10531342		Instructions, Installation		Appelez-nous	-
1	W10531343		Guide, Use & Care		Appelez-nous	-
1	W10552353		Instructions, Oven Ignition		Appelez-nous	-
1	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
2	WPW10179560		Cooktop (white)   (Replaces: W10179560)				$ 283.04
3	W10534699		Panel, Manifold (white)		Appelez-nous	-
4	WPW10483313		Knob, Burner (white)   (Replaces: W10483313)				$ 19.35
5	W10561694		Knob, Thermostat (white)		Appelez-nous	-
6	WPW10180089		Grate, Set (black)   (Replaces: W10180089)				$ 42.40
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	W10207167		Bumper, Cooktop		Appelez-nous	-
9	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
10	98012912		Support, Oven Burner		Appelez-nous	-
11	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
12	W10837731		Screw   (Replaces: 98006633)				$ 7.07
13	W10533468		Indicator, Battery Status		Appelez-nous	-
14	WPW10243396		Burner, Standard   (Replaces: W10243396)				$ 81.38
15	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
16	W11690131		Lens, Indicator   (Replaces: W10179657)				$ 6.73
