SELECT A DIAGRAM

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts

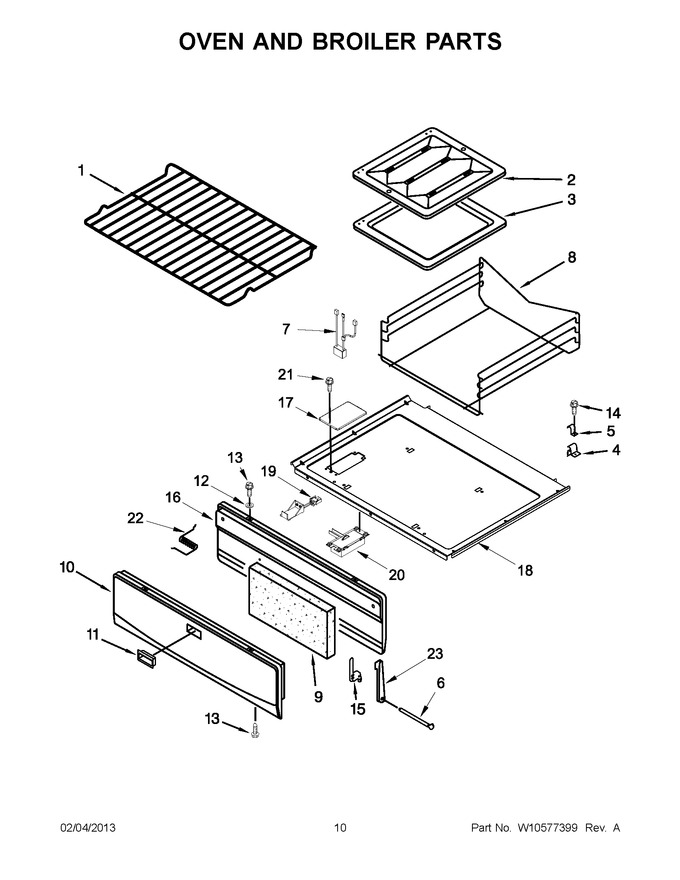

05 - Oven And Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11223841		Rack, Oven   (Replaces: 98016942)				$ 95.09
2	WP98003480		Grill, Broiler   (Replaces: 98003480)				$ 89.69
3	WP98016005		Pan, Broiler   (Replaces: 98016005)				$ 77.97
4	98004715		Guide, Rack		Appelez-nous	-
5	98008341		Cover, Guide		Appelez-nous	-
6	98004053		Pin, Hinge		Appelez-nous	-
7	W10538600		Jumper, Battery		Appelez-nous	-
8	98016570		Rack, Broiler		Appelez-nous	-
9	W11688784		Insulation, Door   (Replaces: W10137224)		Appelez-nous	-
10	98017156W		Panel, Drawer (white)		Appelez-nous	-
11	WP3405184		Handle, Broiler Drawer (white)   (Replaces: 98008486)				$ 68.41
12	W10216805		Washer		Appelez-nous	-
13	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
14	W10837731		Screw   (Replaces: 98006633)				$ 7.07
15	W11499074		Hanger, Brlr Door   (Replaces: 98003790)		Appelez-nous	-
16	98004700		Liner, Door		Appelez-nous	-
17	W10518027		Cover, Battery		Appelez-nous	-
18	W10517863		Base, Baffle		Appelez-nous	-
19	W10518028		Harness, Battery Case		Appelez-nous	-
20	W10518026		Box, Battery		Appelez-nous	-
21	W10837674		Screw   (Replaces: W10146346)				$ 6.90
22	98009249		Spring, Hinge (left Hand)		Appelez-nous	-
22	98009248		Spring, Hinge (right Hand)		Appelez-nous	-
23	98003791		Support, Hinge		Appelez-nous	-
