SELECT A DIAGRAM

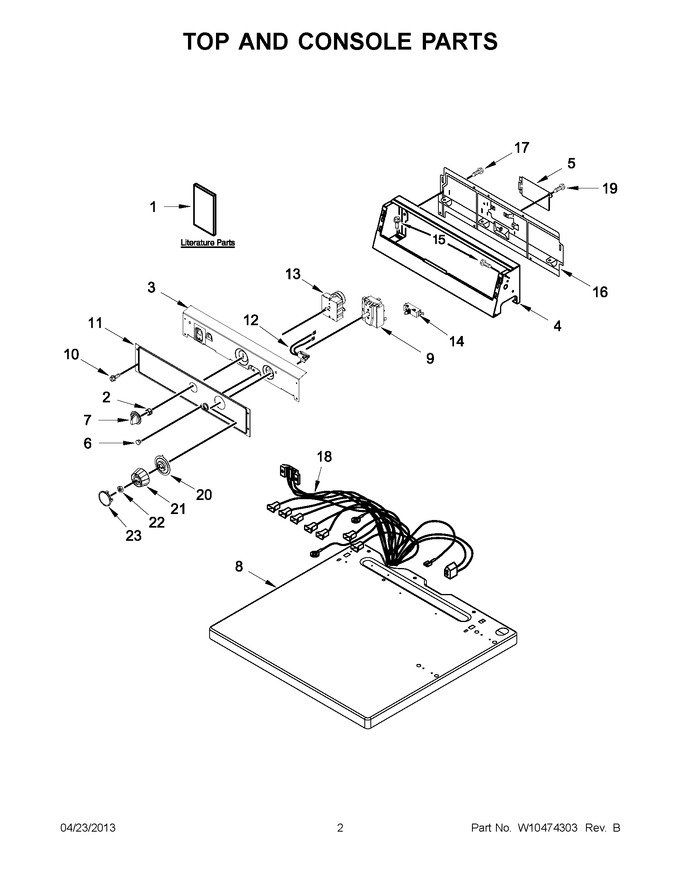

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10474273		Installation Instructions		Appelez-nous	-
1	W10296778		Wiring Diagram (mde18mnayw0)		Appelez-nous	-
1	W10296779		Wiring Diagram (mde18mnazw0)		Appelez-nous	-
2	W10140928		Clip, Knob				$ 5.22
3	W10461071		Back Bracket, Non-coin		Appelez-nous	-
4	W11124005		Console   (Replaces: W10461095)				$ 204.36
5	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 115.52
6	WPW10133502		Lights, Indicator Assembly   (Replaces: W10133502)				$ 11.58
7	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 23.64
8	WPW10136704		Top (white)   (Replaces: W10136704)				$ 234.39
9	WPW10157942		Timer, Dryer   (Replaces: W10157942)				$ 300.75
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10461110		Fascia		Appelez-nous	-
12	W10662107		Lamp-indicator   (Replaces: W10130072)				$ 23.30
13	WPW10327105		Switch, Cycle Selection   (Replaces: W10327105)				$ 145.49
14	W11097274		Switch, Pts   (Replaces: W10488054)				$ 60.71
15	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
16	285909		Panel, Rear Console   (Replaces: 8317305)				$ 224.07
17	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
18	W10153137		Harness, Main (mde18mnayw0)		Appelez-nous	-
18	W10164627		Harness, Main (mde18mnazw0)				$ 181.47
19	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
20	W10133506		Skirt, Dial				$ 17.06
21	W11232017		Knob, Control   (Replaces: W10133505)				$ 11.13
22	W10155650		Nut, Hex				$ 12.03
23	WPW10133501		Cap, Knob   (Replaces: W10133501)				$ 54.76

    View Diagram in Separate Window       Print Part List
