01 - Top And Console Parts

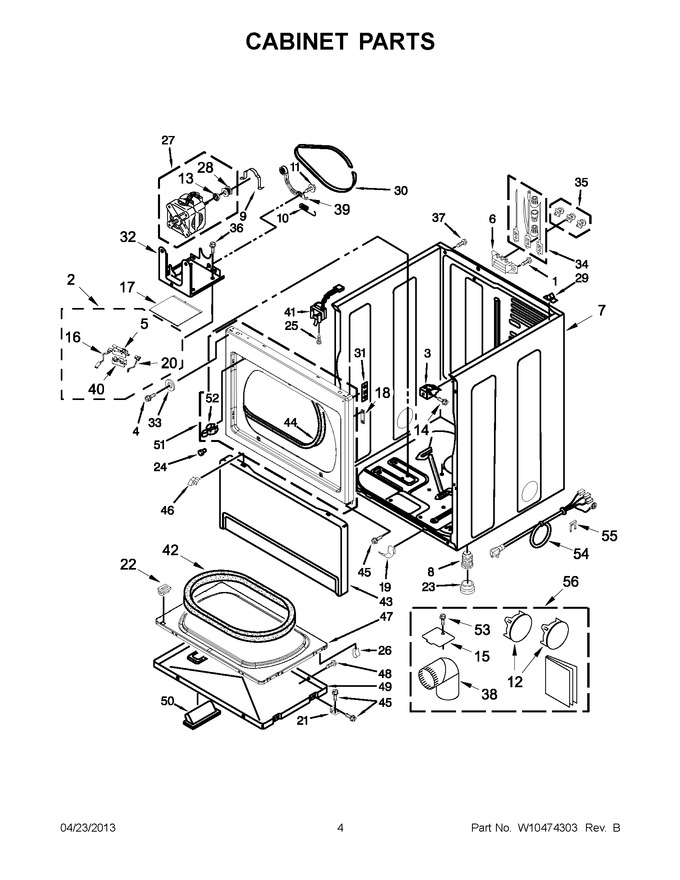

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
2	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 23.76
3	3391846		Clip, Front Panel				$ 19.04
4	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
5	WP8564010		Assembly, Switch & Actuator   (Replaces: 8564010)				$ 89.24
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 20.72
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 377.29
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.05
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 22.11
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.22
12	WPW10404617		Multivent Plug (white)   (Replaces: W10404617)				$ 64.78
13	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 119.21
14	681615		Screw   (Replaces: 3391915)				$ 12.49
15	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.06
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 19.96
18	W10191265		Plug, Hinge (white)				$ 39.85
19	WPW10291934		Clip   (Replaces: W10291934)				$ 6.98
20	8539892		Wire-motor To-belt-switch		Appelez-nous	-
21	WPW10279703		Assembly, Hinge & Pin   (Replaces: W10279703)				$ 65.00
22	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.00
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.04
24	693152		Bumper				$ 9.86
25	WP3395530		Screw   (Replaces: 697773)				$ 6.93
26	WPW10131123		Nut, ``u``   (Replaces: W10131123)				$ 6.94
27	W11234001		Assembly, Motor 60 Hz.   (Replaces: W10396034)			Immediately	$ 371.89
28	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 45.92
29	WP345670		Lock-top   (Replaces: 345670)			Immediately	$ 6.93
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 39.60
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 10.00
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 113.26
33	W11089212		Washer   (Replaces: 3392186)				$ 8.70
34	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 90.89
35	279393		Screw Kit, Terminal Block			Immediately	$ 42.63
36	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.07
37	W10850756		Screw   (Replaces: 8533974)				$ 6.98
38	WPW10416072		Elbow   (Replaces: 49026)				$ 24.14
39	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 81.06
40	8564011		Bracket, Switch				$ 16.35
41	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 50.08
42	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
43	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 214.50
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP488627		Screw   (Replaces: 342055)				$ 6.81
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	280083		Door, Rear   (Replaces: W10323061)				$ 258.32
48	WP3400077		Screw   (Replaces: 3400077)				$ 6.25
49	W11663440		Door, Front   (Replaces: W10322546)				$ 233.43
50	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 68.18
51	W10242810		Panel, Front (white)   (Replaces: W10192882)				$ 324.96
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
53	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.47
54	W11095079		Cord, Power   (Replaces: 3394208)			Immediately	$ 118.49
55	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.66
56	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 68.99
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
