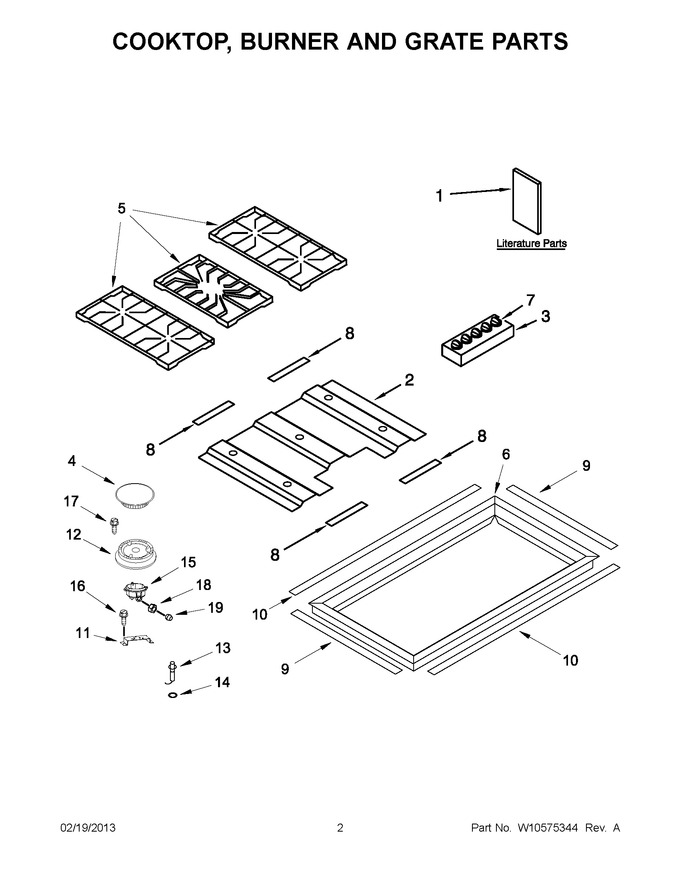

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10526414		Use And Care Guide		Appelez-nous	-
1	W10526416		Lp Conversion Installation Instructions		Appelez-nous	-
1	W10526418		Installation Instructions		Appelez-nous	-
2	W10581047		Cooktop, Top Plate		Appelez-nous	-
3	8190909		Panel, Control		Appelez-nous	-
4	WP8286818		Cap,burner (large (black) (center))   (Replaces: 8286818)				$ 100.97
4	WP8286817		Cap,burner (medium (black) (right Front And Left Rear))   (Replaces: 8286817)				$ 100.88
5	8190980		Grate, Burner (black (center))		Appelez-nous	-
5	8190891		Grate, Burner (black (left And Right Side))		Appelez-nous	-
6	8190906		Frame, Top		Appelez-nous	-
7	W10569186		Knob (stainless)		Appelez-nous	-
8	8190903		Seal, Foam 3/8 X 1/2 X 5.5``		Appelez-nous	-
9	8190905		Seal, Foam 1/8 X 1/2 X 18``				$ 44.36
10	8190981		Seal, Foam 1/8 X 1/2 X 33``				$ 27.42
11	W10618476		Bracket, Burner   (Replaces: W10571939)		Appelez-nous	-
12	WP8286815		Base, Burner (large (center))   (Replaces: 8286815)			Immediately	$ 66.94
12	WP8286814		Base, Burner (medium (right Front And Left Rear))   (Replaces: 8286814)				$ 106.79
13	WPW10571486		Electrode (l-220 (lerft Front))   (Replaces: W10571486)				$ 40.19
13	WPW10571488		Electrode (l-360 (center))   (Replaces: W10571488)				$ 48.46
13	W10571487		Electrode (l-250 (right Front))		Appelez-nous	-
13	WPW10571490		Electrode (l-540 (right Rear))   (Replaces: W10571490)				$ 71.45
13	WPW10571489		Electrode (l-450 (left Rear))   (Replaces: W10571489)				$ 50.75
14	W10571930		Clip, Electrode			Immediately	$ 21.71
15	WPW10571491		Holder, Orifice (132 (right Front And Left Rear))   (Replaces: W10571491)				$ 63.45
15	WPW10571493		Holder, Orifice (170 (center))   (Replaces: W10571493)				$ 72.47
15	WPW10571492		Holder, Orifice (155 (left Front & Right Rear))   (Replaces: W10571492)				$ 73.14
16	WP8287059		Screw   (Replaces: 8287059)			Immediately	$ 7.02
17	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
18	W10575398		Nut, Injector		Appelez-nous	-
19	W10575399		Ferrule, Injector		Appelez-nous	-
