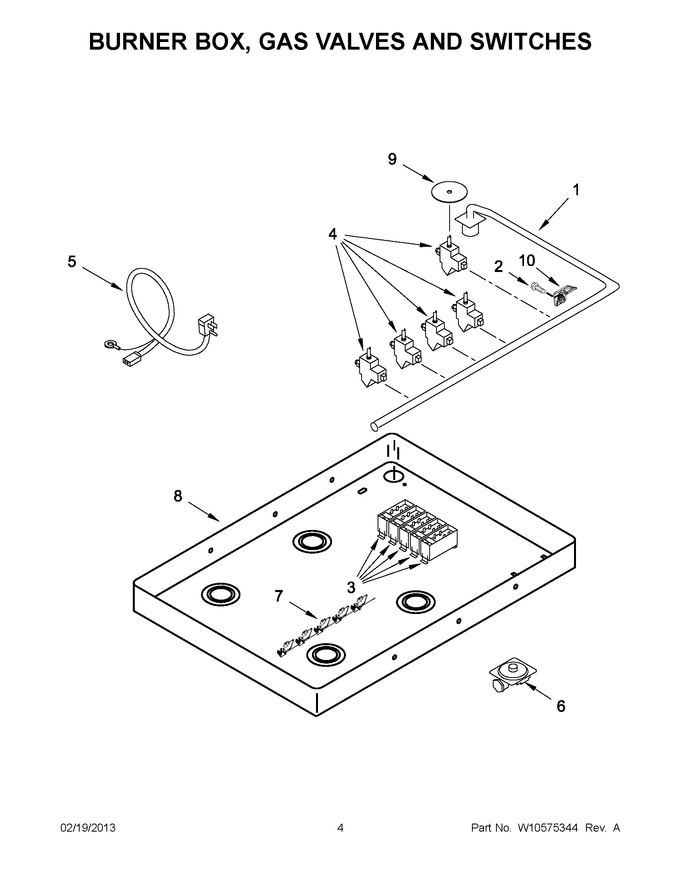

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8190910		Pipe, Manifold		Appelez-nous	-
2	8287057		Screw, Valve Bracket				$ 10.15
3	W11601369		Spark Module   (Replaces: 8190929)			Immediately	$ 60.62
4	WPW10569183		Valve, Gas Burner (sabaf Medium (right Front And Left Rear))   (Replaces: W10569183)				$ 248.50
4	WPW10569184		Valve, Gas Burner (sabaf Large (center))   (Replaces: W10569184)				$ 230.00
5	8190925		Power Cord		Appelez-nous	-
6	WPW10569189		Regulator, Gas   (Replaces: W10569189)			Immediately	$ 226.67
7	WPW10569187		Harness, With Switches   (Replaces: W10569187)				$ 122.26
8	W10569185		Box, Burner		Appelez-nous	-
9	W10140571		Seal, Valve Shaft				$ 6.60
10	8287055		Bracket, Single Valve				$ 65.54
NI	W10571940		Conversion Kit, Lp		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10569188		Harness, Point To Point Wiring		Appelez-nous	-
NI	8190978		Bracket - Mntg				$ 81.04
NI	8190979		Screw - Mntg		Appelez-nous	-
NI	W11628754		Gasket (cooktop Mounting)   (Replaces: 8190977)				$ 142.44
NI	W10571941		Orifice, Lp 9k 0.88		Appelez-nous	-
NI	W10571952		Orifice, Lp 12k 1.02				$ 110.74
NI	W10571953		Orifice, Lp 15k 1.14		Appelez-nous	-
