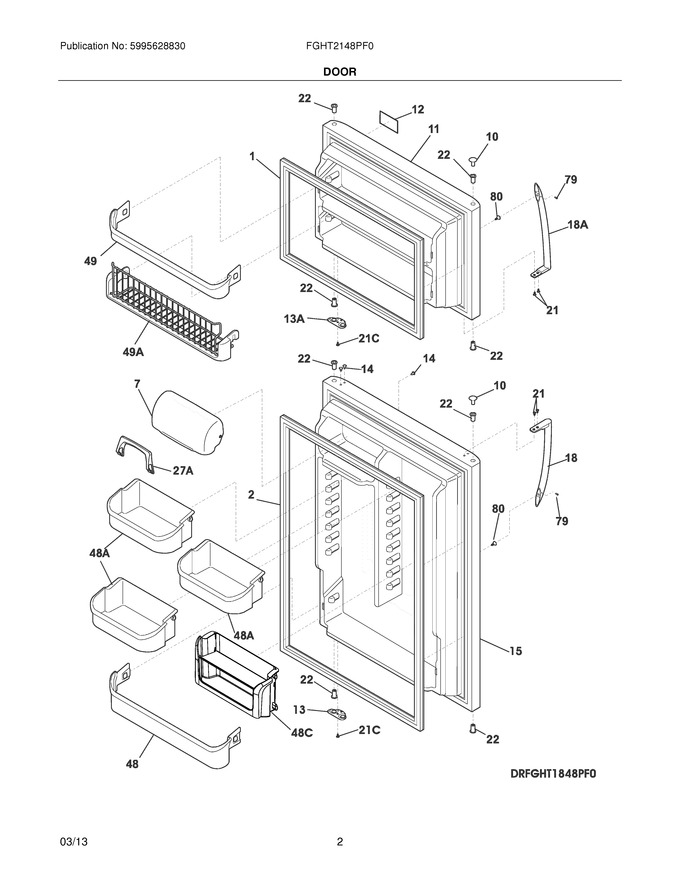

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
10	240381307		Plug-button,silver Mist ,hinge Brg Hole   (Replaces: 240381306)			Immediately	$ 16.69
11	242178001		Door-frzr,stainless ,complete Assy				$ 576.12
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
14	240494006		Plug-button,silver Mist				$ 19.69
15	242178114		Door-refr,stainless ,complete				$ 558.81
18	241977901		Handle-door,stainless ,refr-rh/frzr-lh   (Replaces: 241977501)				$ 336.65
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495805		Bin-door,pseudo ,frzr				$ 50.94
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
18A	241977901		Handle-door,stainless ,refr-lh/frzr-rh   (Replaces: 241977502)				$ 336.65
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
27A	241812702		Retainer,tall Bottle				$ 18.38
48A	241808201		Bin-door,gallon			Immediately	$ 79.97
48C	242088303		Bin-door,left Over				$ 57.18
49A	241801401		Bin-tilt Out,tilt-out				$ 119.79
F1	241872505		Gasket-frzr Door,white ,magnetic   (Replaces: 242193205)				$ 179.22
F2	242193213		Gasket-refr Door,white ,magnetic			Immediately	$ 190.22
NI	241601001		Wrench,allen		Appelez-nous	-
