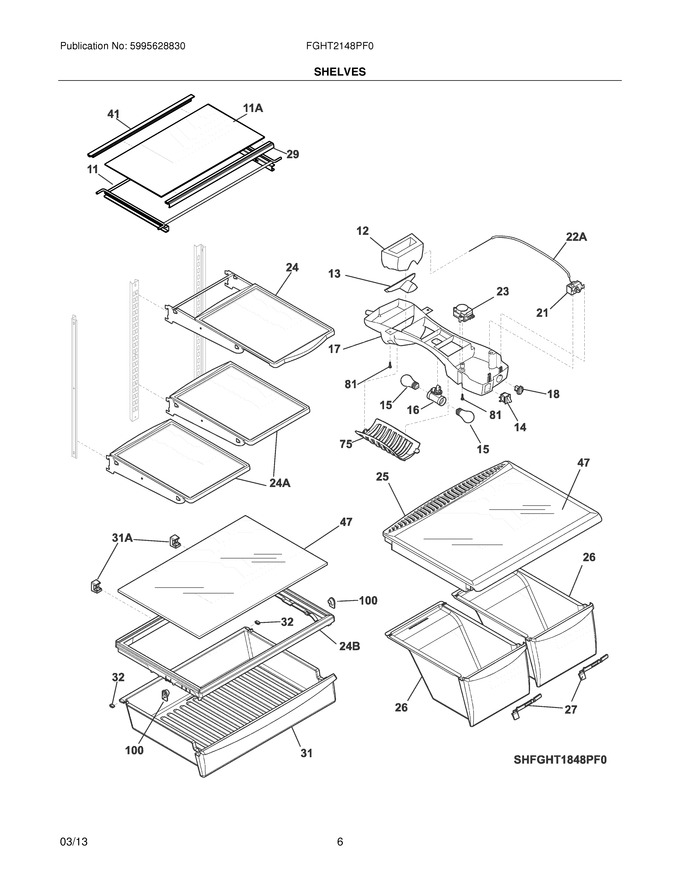

| 11 | 242087801 | Frame-shelf,full Width |
|
- | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 70.16 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 16 | 240364201 | Socket-light/lamp,dual |
|
$ 100.50 | |||||
| 17 | 240368105 | Box-control,front |
|
Immediately | $ 130.44 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240350143 | Shelf-``spill-safe``,cantilever ,sliding |
|
$ 179.24 | |||||
| 25 | 242201803 | Cover-crisper Pan |
|
$ 123.17 | |||||
| 26 | 242218506 | Pan,crisper ,(2) ,w/humid Cntl (Replaces: 242218504) |
|
$ 119.78 | |||||
| 27 | 242215901 | Slide,humidity Contrl |
|
$ 18.95 | |||||
| 29 | 242110901 | Trim-shelf,front |
|
- | |||||
| 31 | 242322203 | Meat Pan,fw Pantry ,w/slide Clips |
|
$ 258.92 | |||||
| 32 | 240349801 | Clip-slide,pan |
|
$ 20.48 | |||||
| 41 | 242111001 | Trim-shelf,rear |
|
$ 19.24 | |||||
| 47 | 240350609 | Insert-pan Cover,glass |
|
Immediately | $ 162.30 | ||||
| 75 | 240412701 | Shield,light (Replaces: 240412702) |
|
$ 16.30 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 100 | 241768601 | Support-crspr Cover |
|
$ 19.13 | |||||
| 11A | 242087901 | Glass-shelf,full Shelf |
|
- | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white |
|
$ 9.10 | |||||
| 24A | 240355261 | Shelf-``spill-safe``,fixed |
|
$ 168.53 | |||||
| 24B | 242205404 | Cover,deli Pan ,full Width (Replaces: 242205402) |
|
$ 116.03 | |||||
| 31A | 242205501 | Support-shelf,fw Pantry ,rear |
|
$ 16.28 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| F15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| F21 | 241537103 | Control-temperature (Replaces: 5304445058) |
|
Immediately | $ 72.31 | ||||
| F23 | 215846604 | Timer-defrost (Replaces: 241809402) |
|
Immediately | $ 24.58 | ||||
| F24B | 240362101 | Clip-slide,cover |
|
$ 47.03 | |||||
| F24B | 241872203 | Support-beam |
|
$ 53.85 | |||||
| FNI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 807407005 | Label,energy Guide |
|
- | |||||
| NI | 240568606 | Seal (Replaces: 240568607) |
|
$ 12.76 | |||||
| NI | 5304455649 | Screw,pan Hd ,6-20 X 0.438 |
|
$ 17.01 | |||||
| NI | 5303299664 | Spacer-shelf |
|
$ 24.10 | |||||
| NI | 5304535377 | Tape,aluminum ,3`` Wide (Replaces: 240570304) |
|
$ 31.36 |
