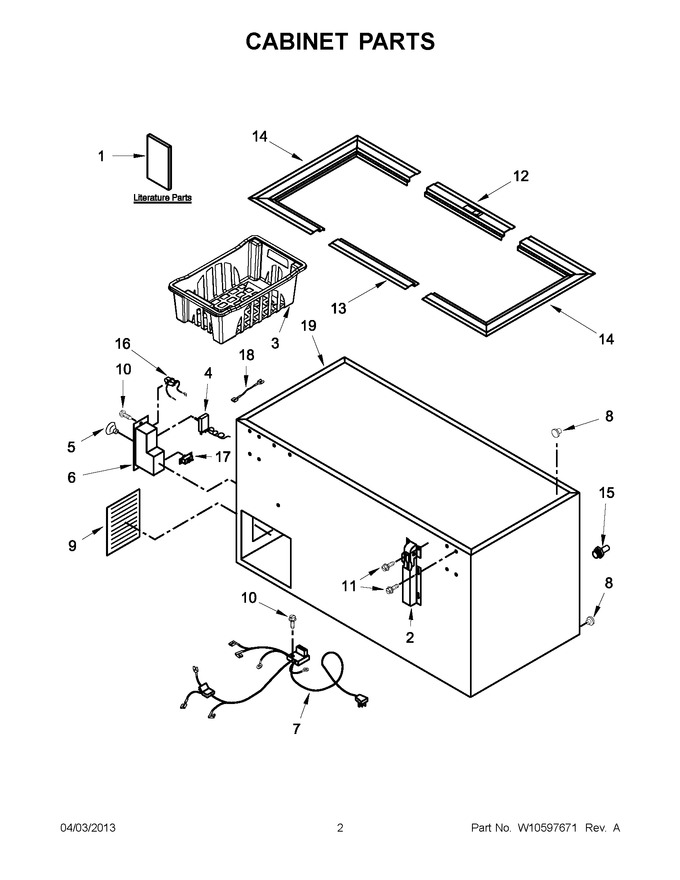

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326796		Owners Manual		Appelez-nous	-
1	W10326817		Energy Guide/tag		Appelez-nous	-
2	W11192197		Hinge, Assembly   (Replaces: 4-34582-008)				$ 167.57
3	W10562395		Basket		Appelez-nous	-
4	4-35940-004		Thermostat				$ 228.09
5	4-35101-002		Knob, Thermostat		Appelez-nous	-
6	4-35976-001		Control Box				$ 34.65
7	4-35521-002		Harness, Wiring				$ 160.17
8	3-33211-001		Drain, Plug				$ 10.63
9	4-35099-001		Access Panel		Appelez-nous	-
10	3-24004-049		Screw		Appelez-nous	-
11	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
12	4-35011-004		Breaker Strip, Front				$ 75.80
13	4-35010-004		Breaker Strip, Rear		Appelez-nous	-
14	W11045300		Breaker Strip, End   (Replaces: 4-35009-003)				$ 80.74
15	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
16	2-32304		Buzzer, Door Alarm				$ 26.61
17	2-32307		Switch, Alarm				$ 76.86
18	3-30389-079		Wire, Lead		Appelez-nous	-
19	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
