01 - Cabinet Parts

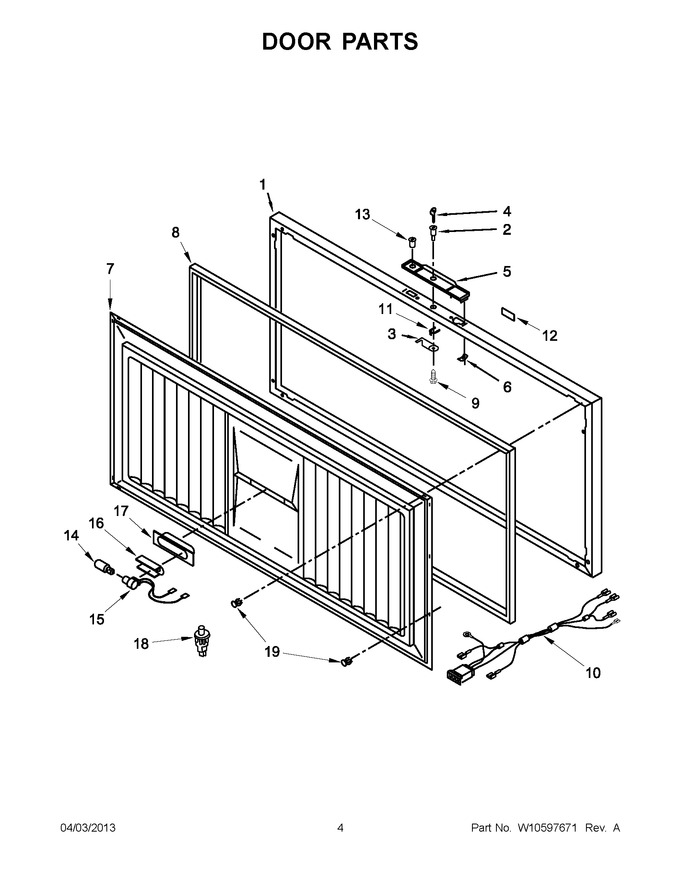

02 - Door Parts


03 - Unit Parts


04 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-35652-304		Exterior Door Panel				$ 346.33
2	3-35284-001		Lock Kit				$ 24.42
3	2-35195-006		Hook Bolt, Lock				$ 23.46
4	WP1-26355		Key   (Replaces: 1-26355)				$ 9.76
5	4-35663-149		Handle				$ 43.72
6	3-24059-024		Clip, Oblong				$ 12.11
7	4-25774-031		Interior Door Panel		Appelez-nous	-
8	WP4-35260-005		Gasket   (Replaces: 4-35260-005)				$ 287.65
9	W11233072		Screw   (Replaces: 3-24004-100)			Immediately	$ 12.62
10	W10620417		Harness, Wiring (lid)   (Replaces: 4-35641-002)				$ 120.34
11	1-26359		Clip, Spring				$ 71.75
12	W11178521		Nameplate (white)   (Replaces: W10481434)			Immediately	$ 56.82
13	3-75560-003		Light, Indicator				$ 105.09
14	W10873798		Bulb, Light   (Replaces: 1-24397-001)			Immediately	$ 12.53
15	3-35862-001		Socket, Light		Appelez-nous	-
16	2-30045-001		Shield, Heat				$ 11.39
17	3-25693-001		Reflector, Light				$ 15.36
18	W10917237		Switch, Light   (Replaces: 3-35645-001)				$ 39.14
19	2-25702-006		Gasket, Clip				$ 13.20
