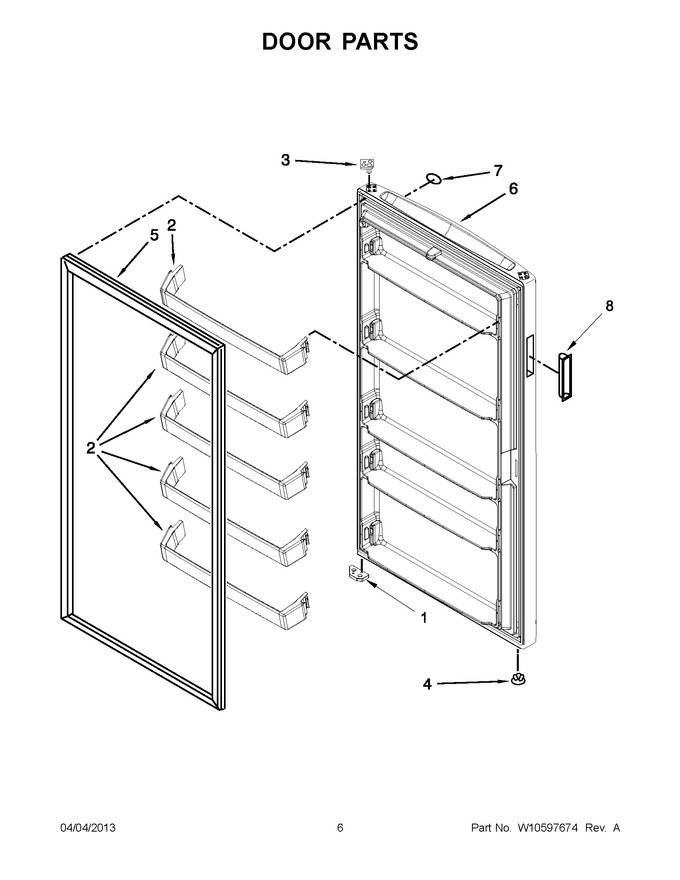

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2-81124-001 | Door Stop, Lower (natural) |
|
$ 31.15 | |||||
| 2 | WP4-65450-001 | Rail, Door Shelf (Replaces: 4-65450-001) |
|
$ 73.45 | |||||
| 3 | 2-81124-001 | Door Stop, Upper (natural) |
|
$ 31.15 | |||||
| 4 | 3-24898-007 | Plug, Vent |
|
$ 9.72 | |||||
| 5 | WP4-65151-001 | Door Gasket, Magnetic (white) (Replaces: 4-65151-001) |
|
$ 303.88 | |||||
| 6 | W10563103 | Freezer Door (white) |
|
- | |||||
| 7 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 8 | W10182940 | Handle, Fc (white) |
|
$ 62.06 |
