01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

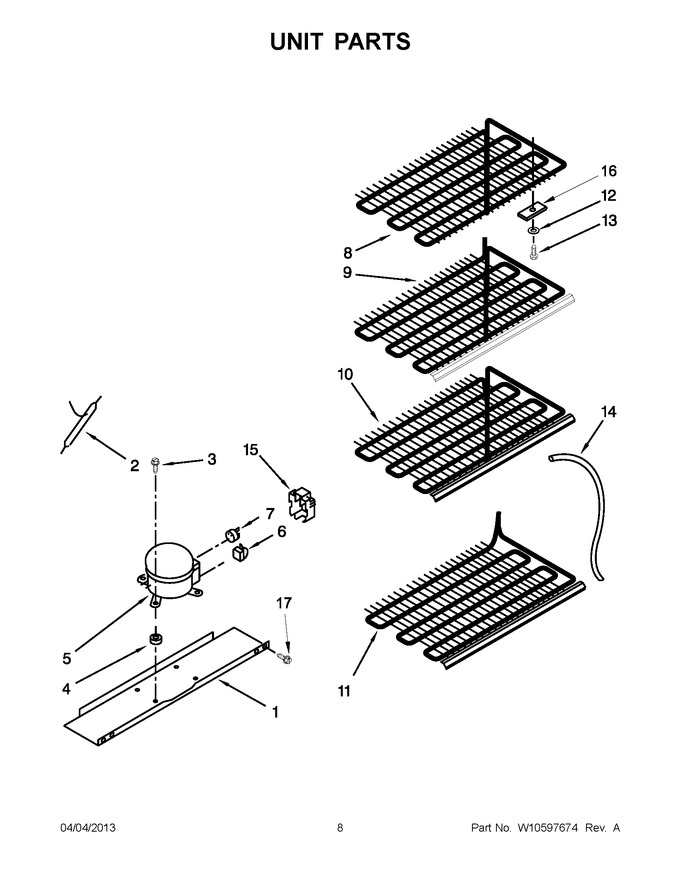

1	W10470130		Pan, Compressor Mounting		Appelez-nous	-
2	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 47.31
3	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
4	WP2163786		Grommet, Compressor   (Replaces: 13146462)				$ 7.16
5	W10309989		Compressor   (Replaces: 4-32972-141)			Immediately	$ 591.26
6	WPW10189190		Relay   (Replaces: 2-35154-010)			Immediately	$ 118.16
7	2-34286-039		Overload				$ 155.37
8	4-82413-002		Evaporator, Top		Appelez-nous	-
9	4-82194-003		Evaporator, Shelf		Appelez-nous	-
10	4-82195-003		Evaporator, Shelf		Appelez-nous	-
11	4-82197-002		Evaporator, Shelf Bottom		Appelez-nous	-
12	3-80681-133		Washer		Appelez-nous	-
13	WP3-24004-109		Screw, Evaporator Mounting   (Replaces: 3-24004-109)				$ 7.25
14	2-82030-005		Heat Exchanger				$ 127.33
15	W10393770		Cover   (Replaces: 3-35171-003)				$ 98.67
16	1-80308-101		Clamp				$ 67.64
17	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 7.00
NI	N/P		Refrigerant Charge 4.2 Oz (r-134a)		Appelez-nous	-
