SELECT A DIAGRAM

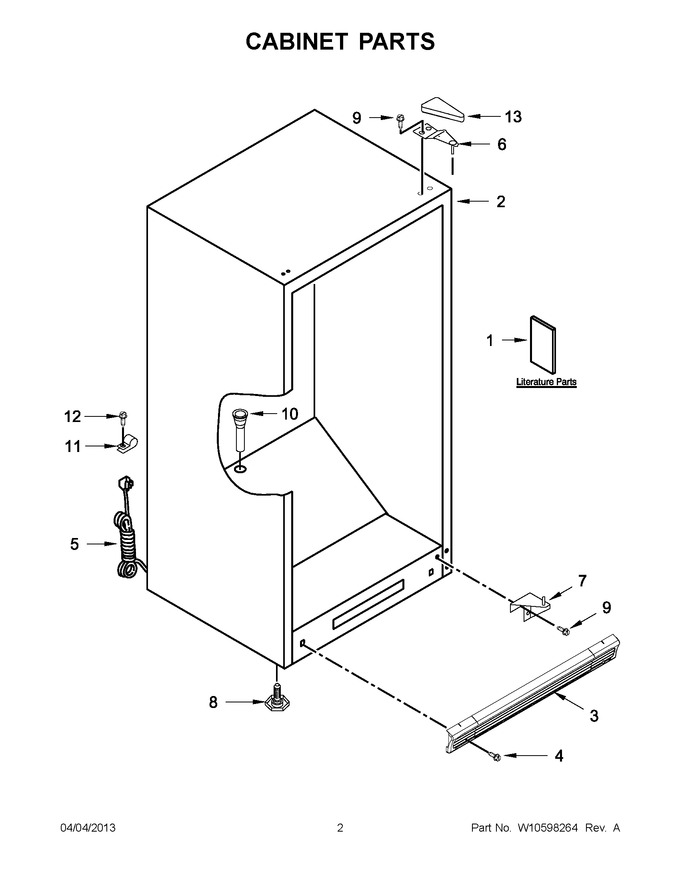

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326807		Energy Guide/tag		Appelez-nous	-
1	W10326799		Owners Manual		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	WP4-60461-005		Trim, Toe Kick (white)   (Replaces: 4-60461-005)				$ 100.70
4	WP489478		Screw   (Replaces: 3-24004-107)				$ 6.98
5	4-82399-001		Cord, Power				$ 52.24
6	2-81016-105		Hinge, Top Fc (white)				$ 37.06
7	4-82693-002		Hinge, Bottom				$ 72.12
8	WP3-82710-001		Leg, Leveler (black)   (Replaces: 3-82710-001)			Immediately	$ 18.29
9	WP8204624		Screw   (Replaces: 1-80271-103)				$ 14.99
10	W10558247		Grommet, Drain		Appelez-nous	-
11	1-80231-101		Clamp, Tube		Appelez-nous	-
12	WP489478		Screw   (Replaces: 3-80675-105)				$ 6.98
13	3-80838-003		Cover, Hinge (white)				$ 4.50

    View Diagram in Separate Window       Print Part List
