01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)

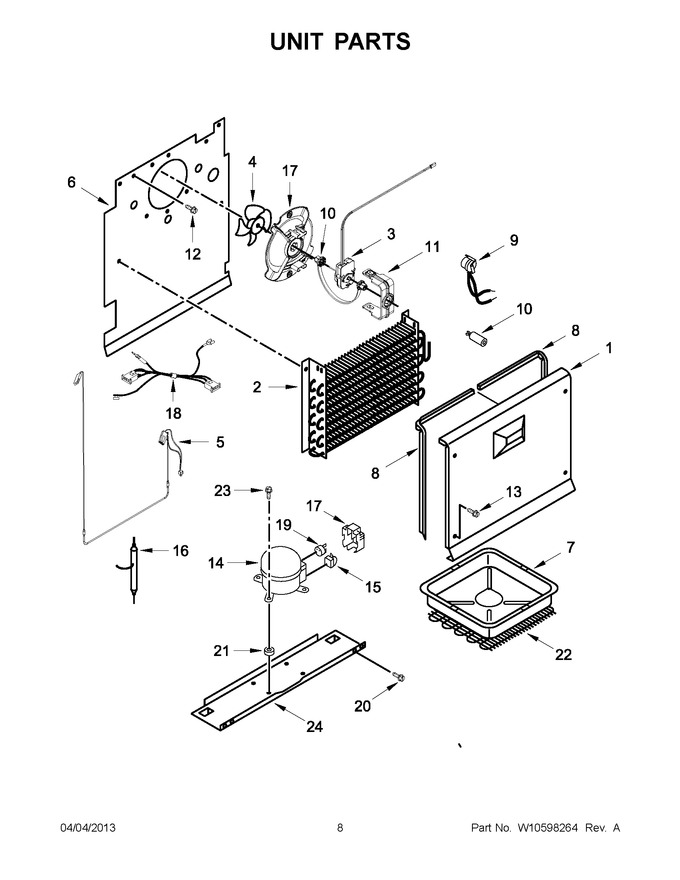

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10455861		Evaporator				$ 257.12
3	W11780227		Fan Motor   (Replaces: W10236142)			Immediately	$ 127.80
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
5	WPW10486820		Assembly, Heater Harness Includes Bimetal & Defrost Heater   (Replaces: W10486820)				$ 202.30
6	W10452115		Plate, Evaporator Mount				$ 225.55
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	4390663		Gasket, Evaporator Cover (right Side)   (Replaces: 3-60180-001)				$ 215.10
8	3-60180-002		Gasket, Evaporator Cover (left Side)				$ 24.93
9	WPW10491891		Bi-metal Defrost   (Replaces: W10491891)				$ 85.05
10	W11690160		Grommet, Fan Motor   (Replaces: W10150583)				$ 7.12
11	13058002		Clip, Evaporator Motor				$ 12.66
12	60001022		Screw   (Replaces: 3-80732-004)				$ 56.93
13	W10451793		Screw		Appelez-nous	-
14	W10309994		Compressor   (Replaces: 4-32972-143)			Immediately	$ 551.61
15	WPW10466655		Relay   (Replaces: W10466655)				$ 115.81
16	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 47.31
17	W10457575		Shroud, Evaporator Motor				$ 25.70
18	W10507269		Harness, Fan				$ 102.38
19	WP2183456		Overload   (Replaces: 2-34286-037)				$ 126.16
20	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 7.00
21	WP2163786		Grommet, Compressor   (Replaces: 13146462)				$ 7.16
22	W10451951		Condenser				$ 257.77
23	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
24	W10470130		Pan, Compressor Mounting		Appelez-nous	-
NI	N/P		Refrigerant Charge 4.1 Oz (r-134a)		Appelez-nous	-
