SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


14 - Wiring Diagram

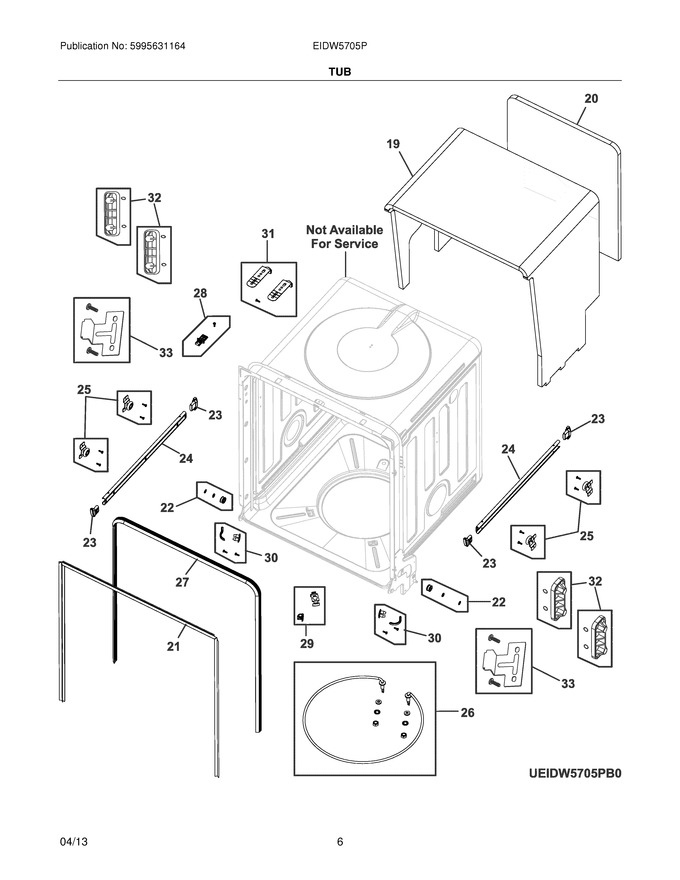

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	5304475591		Insulation,blanket ,top & Sides				$ 162.86
20	5304475592		Insulation,blanket ,back				$ 68.46
21	5304475593		Seal Kit,cabinet				$ 128.57
22	5304475594		Roller Assembly,hinge ,(2)				$ 16.96
23	5304491479		Cap,rack Slide ,(4)				$ 15.60
24	5304475596		Slide,upper Rack ,(2)				$ 63.53
25	5304475597		Roller Assembly,rack Slide ,(4) ,w/screws				$ 41.11
27	5304475599		Gasket,tub			Immediately	$ 51.36
28	5304475600		Strike Assembly,latch ,w/screws				$ 59.54
30	5304475602		Mounting Kit,side ,w/screws				$ 45.60
31	5304516698		Bracket Assembly,top Cabinet ,w/screws   (Replaces: 5304475603)				$ 24.19
32	5304491454		Pad Assembly,rack Slide ,(4) ,w/gaskets		Appelez-nous	-
33	5304488521		Bracket Assembly,side Mount ,(2) ,w/screws				$ 13.42
F26	5304516630		Heater Assembly,tub ,w/nuts-washers   (Replaces: 5304491453)				$ 207.49
F29	5304475601		Thermostat Assembly,hi Limit ,w/bracket				$ 39.69

    View Diagram in Separate Window       Print Part List
