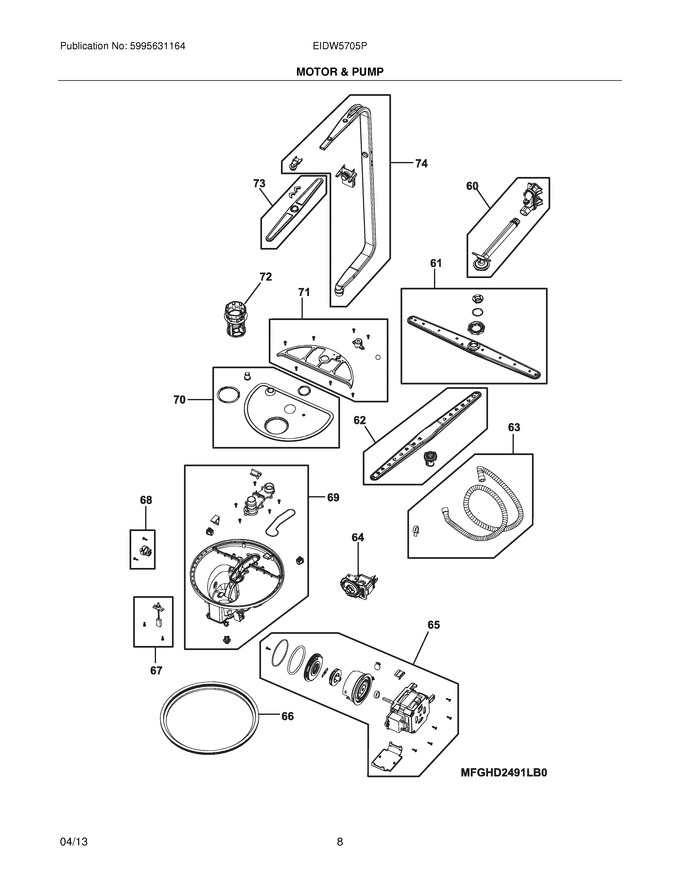

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
14 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 66 | 5304475638 | Gasket,sump |
|
$ 108.41 | |||||
| 70 | 5304491461 | Filter Assembly,coarse |
|
- | |||||
| 71 | 5304491462 | Filter Assembly,fine ,w/screws |
|
$ 68.20 | |||||
| 72 | 5304491463 | Trap,glass |
|
$ 24.41 | |||||
| F60 | 5304491455 | Duct Assembly,spray Arm ,middle |
|
$ 40.11 | |||||
| F61 | 5304491456 | Spray Arm Assembly,middle |
|
$ 98.81 | |||||
| F62 | 5304491457 | Spray Arm Assembly,lower |
|
$ 49.30 | |||||
| F63 | 5304494065 | Hose Assembly,drain ,w/clamp (Replaces: 5304475635) |
|
Immediately | $ 92.30 | ||||
| F64 | 5304524920 | Pump,drain (Replaces: 5304491458) |
|
Immediately | $ 298.81 | ||||
| F65 | 5304491459 | Motor Assembly,wash ,w/screws-seals |
|
$ 295.63 | |||||
| F67 | 5304475639 | Senser Assembly,thermistor ,w/screws |
|
$ 32.03 | |||||
| F68 | 5304475640 | Senser Assembly,turbidity ,w/screws |
|
$ 153.09 | |||||
| F69 | 5304491460 | Sump Assembly,w/clips-screws |
|
$ 206.01 | |||||
| F73 | 5304491464 | Spray Arm Assembly,upper |
|
$ 44.07 | |||||
| F74 | 5304491465 | Tube Assembly,delivery |
|
$ 137.71 |
