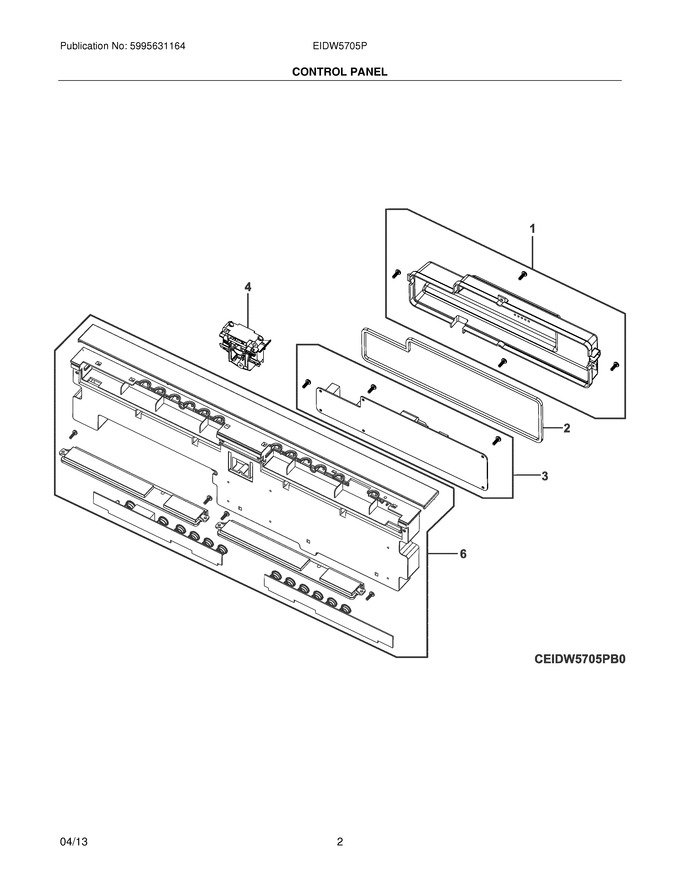

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304475567		Cover Assembly,pc Board ,w/screws				$ 29.66
2	5304475568		Gasket,pcb Cover				$ 13.47
F3	5304491446		Pc Board Assembly,main ,w/screws				$ 254.73
F4	5304475570		Latch,door			Immediately	$ 72.81
F6	5304491447		Console Assembly,black ,w/overlay				$ 303.40
FNI	5304491448		Harness,wiring ,main				$ 194.72
NI	5304491652		Label,energy Guide		Appelez-nous	-
