SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


14 - Wiring Diagram

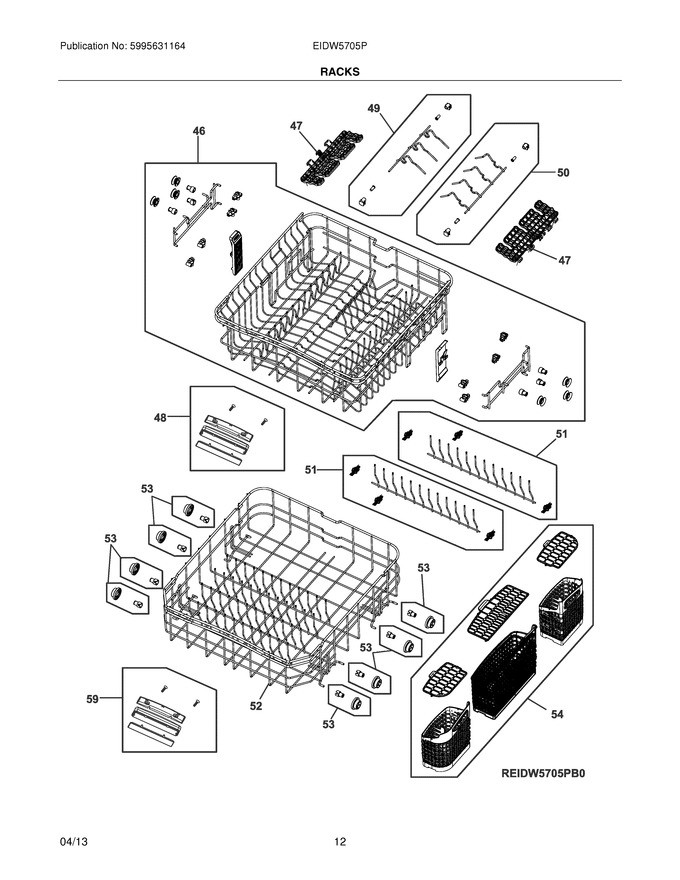

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
46	5304491469		Rack Assembly,upper ,w/rollers				$ 169.94
47	5304491470		Shelf,cup ,(2)		Appelez-nous	-
48	5304491471		Handle Assembly,upper Rack ,w/screws				$ 71.45
49	5304491472		Fence Assembly,lh ,w/bushings		Appelez-nous	-
50	5304491473		Fence Assembly,rh ,w/bushings		Appelez-nous	-
51	5304491474		Fence Assembly,fold Down ,(2) ,w/brackets		Appelez-nous	-
52	5304491475		Rack Assembly,lower		Appelez-nous	-
53	5304475625		Wheel Assembly,lower Rack ,(8)   (Replaces: 5304491476)			Immediately	$ 17.11
54	5304491477		Basket Assembly,silverware ,w/covers				$ 145.04
59	5304491478		Handle Assembly,lower Rack ,w/screws		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
