01 - Lower Cabinet And Front Panel Parts

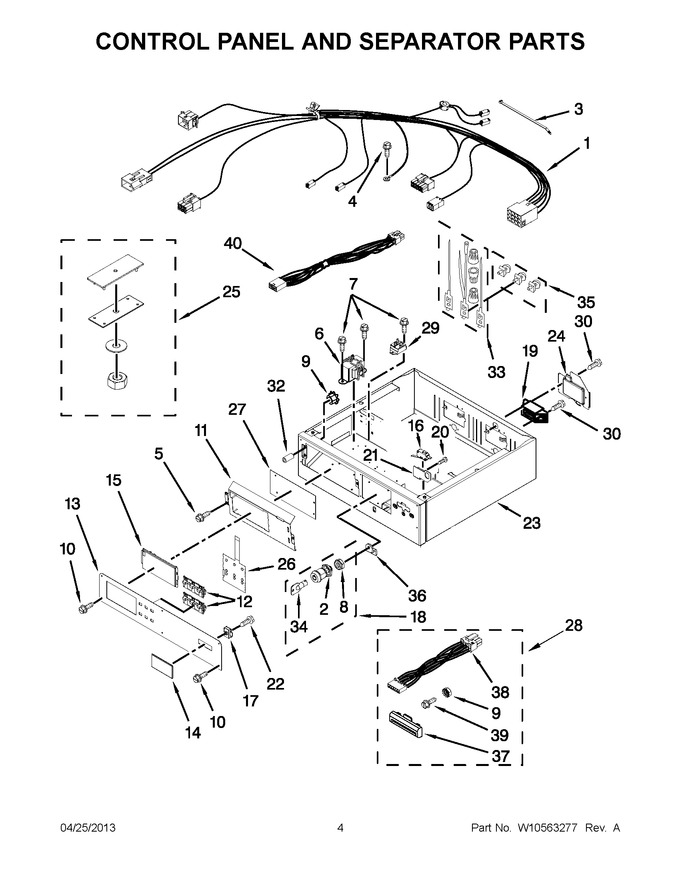

02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169677		Harness, Collar		Appelez-nous	-
2	W11395752		Nut, Hex   (Replaces: W10139762)				$ 11.74
3	WPW10155270		Tie Cable   (Replaces: 8529895)				$ 5.55
4	W10850756		Screw   (Replaces: 8533974)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	WPW10133285		Transformer 120vac To 22.5vac   (Replaces: W10133285)				$ 184.03
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
8	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 125.12
9	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10163677		Plate, Control Mounting		Appelez-nous	-
12	WPW10424308		Button, Push   (Replaces: W10131113)			Immediately	$ 18.38
13	W10135186		Facia Console		Appelez-nous	-
14	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 37.08
17	W10145157		Retainer, Facia Cover		Appelez-nous	-
18	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 125.12
19	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 20.72
20	3400408		Screw		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	3400618		Screw				$ 58.23
23	W10165714		Collar		Appelez-nous	-
24	W10684155		Cover, Terminal Block   (Replaces: W10196677)		Appelez-nous	-
25	W11416034		Kit-coin Box, Security (to Be Serviced As A Kit)   (Replaces: W10169579)				$ 113.40
26	WPW10133278		Membrane Switch Assembly   (Replaces: W10133278)				$ 104.73
27	W11392903		Control Board   (Replaces: W10130700)				$ 615.23
28	W11244126		Card Reader Conversion Kit   (Replaces: W10135263)		Appelez-nous	-
29	W10133335		Relay, Motor				$ 40.14
30	W11676450		Screw   (Replaces: 3400000)				$ 12.65
32	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
33	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 90.89
34	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
35	279393		Screw Kit, Terminal Block			Immediately	$ 42.63
36	W11165684		Cam, Locking   (Replaces: W10133266)				$ 8.20
37	W10163036		Bezel				$ 18.36
38	WPW10239515		Harness, Card Reader   (Replaces: W10239515)				$ 133.01
39	WPW10143462		Screw   (Replaces: W10143462)				$ 5.40
40	W10111027		Jumper, Transformer				$ 41.23
