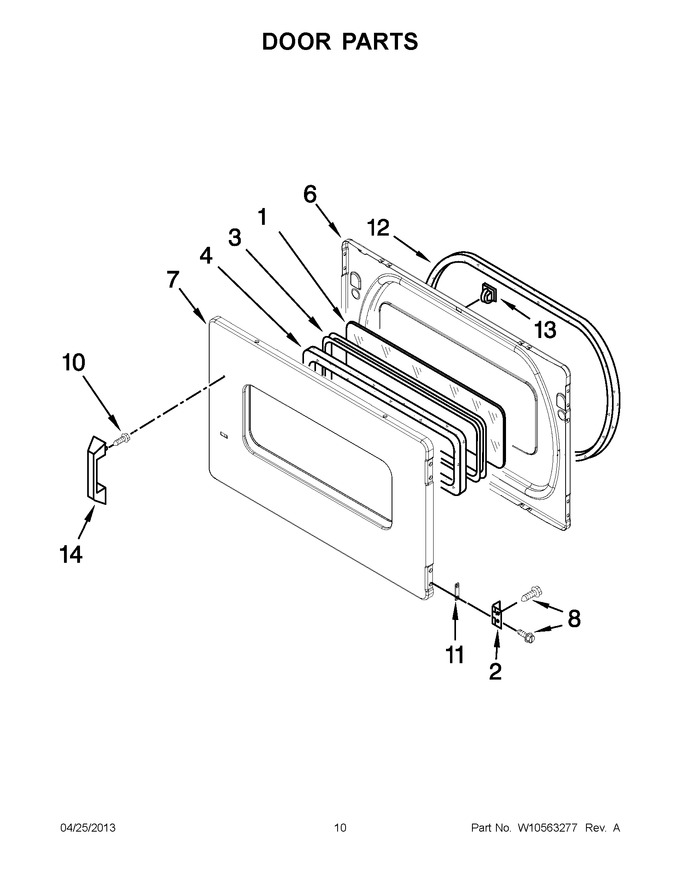

Diagram for 05 - Door Parts
05 - Door Parts

Diagram for 06 - Optional Parts (not Included)
06 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3392918 Window Appelez-nous -
2 WPW10279703 Assembly, Hinge & Pin   (Replaces: W10279703) Special Order $ 65.00

3 3392914 Frame, Window Appelez-nous -
4 3392915 Gasket, Window Special Order $ 58.46

6 W10244331 Door, Inner (white)   (Replaces: W10323063) Appelez-nous -
7 W10322548 Door, Outer (white) Appelez-nous -
8 WP488627 Screw   (Replaces: 342055) Special Order $ 6.81

10 W10850046 Screw   (Replaces: 9742177) In-Stock Immediately $ 6.47

11 W10191265 Plug, Hinge Hole (white) Special Order $ 39.85

12 WP3390735 Seal, Door   (Replaces: 3390735) Special Order $ 117.54

13 279570 Assembly, Door Catch   (Replaces: 3392538) In-Stock Immediately $ 8.00

14 WPW10213202 Handle, Door   (Replaces: W10213202) In-Stock Immediately $ 74.08


    View Diagram in Separate Window     Print Icon   Print Part List
