01 - Cover Sheet

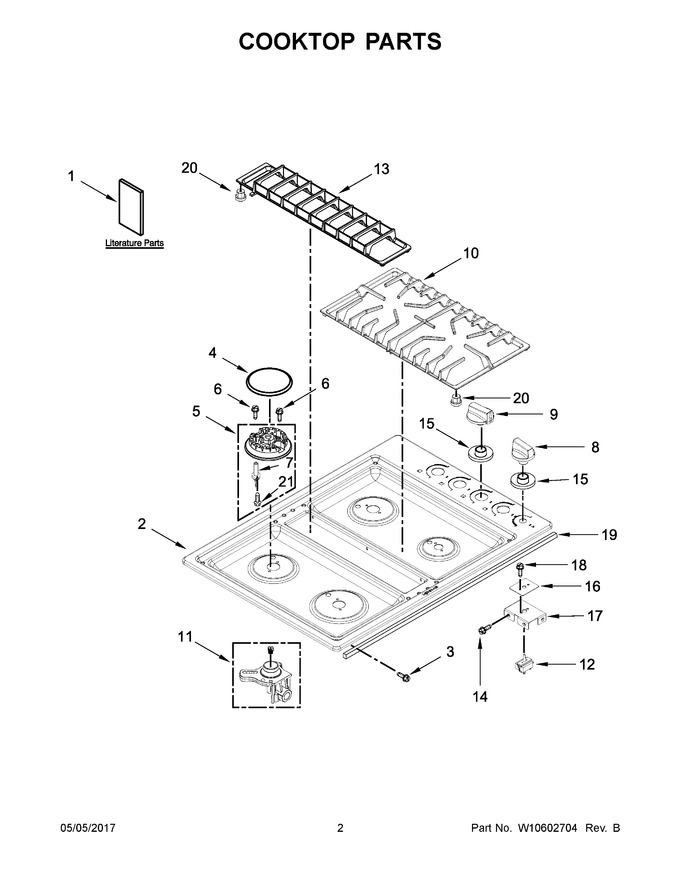

02 - Cooktop Parts
03 - Blower Unit Parts
04 - Burner Box Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10574732 | Instructions, Installation |
|
- | |||||
| 2 | WPW10555854 | Top, Main (black) (Replaces: W10555854) |
|
$ 313.22 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.47 | ||||
| 4 | WP7504P300-60 | Cap, Burner (black (left Front)) (Replaces: 7504P300-60) |
|
$ 106.62 | |||||
| 5 | 74007736 | Assembly, Burner (left Front) (Replaces: 7505P306-60) |
|
Immediately | $ 105.36 | ||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 7 | WP74009336 | Ignitor, Cooktop (Replaces: 7432P121-60) |
|
Immediately | $ 24.30 | ||||
| 8 | W10551840 | Knob, Fan (black) |
|
- | |||||
| 9 | W10559476 | Knob, Control (black) |
|
$ 85.51 | |||||
| 10 | WPW10203095 | Burner, Grate (includes Bumpers) (black) (Replaces: W10203095) |
|
$ 192.38 | |||||
| 11 | WP7527P031-60 | Holder, Orifice (17k) (left Front) (Replaces: 7527P031-60) |
|
$ 99.27 | |||||
| 12 | WP4456836 | Switch, Blower (Replaces: 4456836) |
|
Immediately | $ 158.17 | ||||
| 13 | W10203097 | Grille, Downdraft (includes Bumpers) (black) |
|
$ 122.16 | |||||
| 14 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.47 | ||||
| 15 | W11544657 | Bezel (black) (Replaces: W10559486) |
|
$ 39.38 | |||||
| 16 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.06 | ||||
| 17 | W10235925 | Bracket, Switch Mount |
|
$ 49.50 | |||||
| 18 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 19 | 12002793 | Tape, Foam (Replaces: 8270P188-60) |
|
$ 70.97 | |||||
| 20 | W10919249 | Bumper, Grate (Replaces: 8003P033-60) |
|
Immediately | $ 11.30 | ||||
| 21 | WP8273062 | Screw (Replaces: 7101P606-60) |
|
Immediately | $ 7.12 | ||||
| 10A | W10204541 | Burner, Grate (includes Bumpers) (wetstone) |
|
- | |||||
| 11A | WP7527P002-60 | Holder, Orifice (9.2k) (left Rear) (Replaces: 7527P002-60) |
|
$ 72.90 | |||||
| 11B | 74009553 | Holder, Orifice (5k) (right Front) (Replaces: 7527P042-60) |
|
$ 75.27 | |||||
| 11C | WP7527P003-60 | Holder, Orifice (12.5k) (right Rear) (Replaces: 7527P003-60) |
|
$ 69.37 | |||||
| 13A | W10204544 | Grille, Downdraft (includes Bumpers) (wetstone) |
|
$ 240.32 | |||||
| 15A | W10559485 | Bezel (white) |
|
- | |||||
| 15B | WPW10559494 | Bezel (stainless) (Replaces: W10559494) |
|
Immediately | $ 68.76 | ||||
| 1A | W10222821 | Diagram, Wiring (english) |
|
- | |||||
| 1B | W10222822 | Diagram, Wiring (french) |
|
- | |||||
| 1C | W10555863 | Guide, Use & Care |
|
- | |||||
| 1D | W10240007 | Instructions, Lp Conversion |
|
- | |||||
| 1E | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1F | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1G | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2A | WPW10555855 | Top, Main (white) (Replaces: W10555855) |
|
$ 332.64 | |||||
| 2B | W10555853 | Top, Main (stainless) |
|
- | |||||
| 4A | WP7504P299-60 | Cap, Burner (black (left Rear & Right Rear)) (Replaces: 7504P299-60) |
|
$ 83.03 | |||||
| 4B | WP7504P298-60 | Cap, Burner (black (right Front)) (Replaces: 7504P298-60) |
|
$ 56.92 | |||||
| 4C | 7504P296-60 | Cap, Burner (wetstone (left Front)) |
|
$ 82.75 | |||||
| 4D | 7504P295-60 | Cap, Burner (wetstone (left Rear & Right Rear)) |
|
$ 82.77 | |||||
| 4E | 7504P294-60 | Cap, Burner (wetstone (right Front)) |
|
$ 62.87 | |||||
| 5A | 74007735 | Assembly, Burner (left Rear & Right Rear) (Replaces: 7505P305-60) |
|
Immediately | $ 102.76 | ||||
| 5B | 74007734 | Assembly, Burner (5k) (right Front) (Replaces: 7505P304-60) |
|
$ 107.79 | |||||
| 8A | W10551841 | Knob, Fan (white) |
|
- | |||||
| 8B | W10549673 | Knob, Fan (stainless) |
|
$ 36.40 | |||||
| 9A | W10559477 | Knob, Control (white) |
|
- | |||||
| 9B | WPW10559475 | Knob, Control (stainless) (Replaces: W10559475) |
|
$ 51.04 | |||||
| NI | W10249271 | Rivet, Nylon |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | 8287106 | Clip, Wire (Replaces: W10183556) |
|
- | |||||
| NI | W10815865 | Kit, Orifice Lp |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10207828 | Harness, Main |
|
$ 128.44 | |||||
| NI | W10253222 | Harness, Blower |
|
- | |||||
| NI | W10207829 | Harness, Spark |
|
$ 50.01 | |||||
| NI | 3188867 | Cord, Power (Replaces: 7402P087-60) |
|
$ 168.08 | |||||
| NI | 8019P017-60 | Relief, Strain |
|
- |
